  1. 后卡套/ BF   前卡套 /FF                12. 直通变径穿板终端 / BU                        22.Tube承插焊终端 / WU

  2. 螺帽 / N                                        13.Tube外螺纹穿板终端 / BMC                23.Tube角通终端 / UL

  3. Tube管帽 / TC                              14.Tube内螺纹穿板终端 / BFC                  24.Tube外螺纹角通终端 / ML



  4. Tube直通终端 / U                         15.Tube仪表穿板终端 / GBU                    25.Tube内螺纹角通终端 / FL

  5. Tube直通变径终端 / U                  16.Tube管塞 / P                                       26.Tube三通终端 / UT

  6. Tube外锥管螺纹终端 / MC           17.Tube管适配 / TA                                  27.Tube外螺纹三通终端 / TMT

  7. Tube外直管螺纹终端 / MC           18.Tube变径终端 / R                                 28.Tube外螺纹三通终端 / TTM

  8. SAE ̸ MS直螺纹                           19.Tube变径穿板终端 / BR                       29.Tube内螺纹三通终端 / TFT

  9. Tube仪表终端 / GU                        20.气瓶阀Tube终端/ ECG                        30.Tube内螺纹三通终端 / TTF

  10.Tube内锥管螺纹终端 / FC             21.Tube对焊终端 / WU                            31.Tube四通终端 / UX

  11.Tube直通穿板终端 / BU

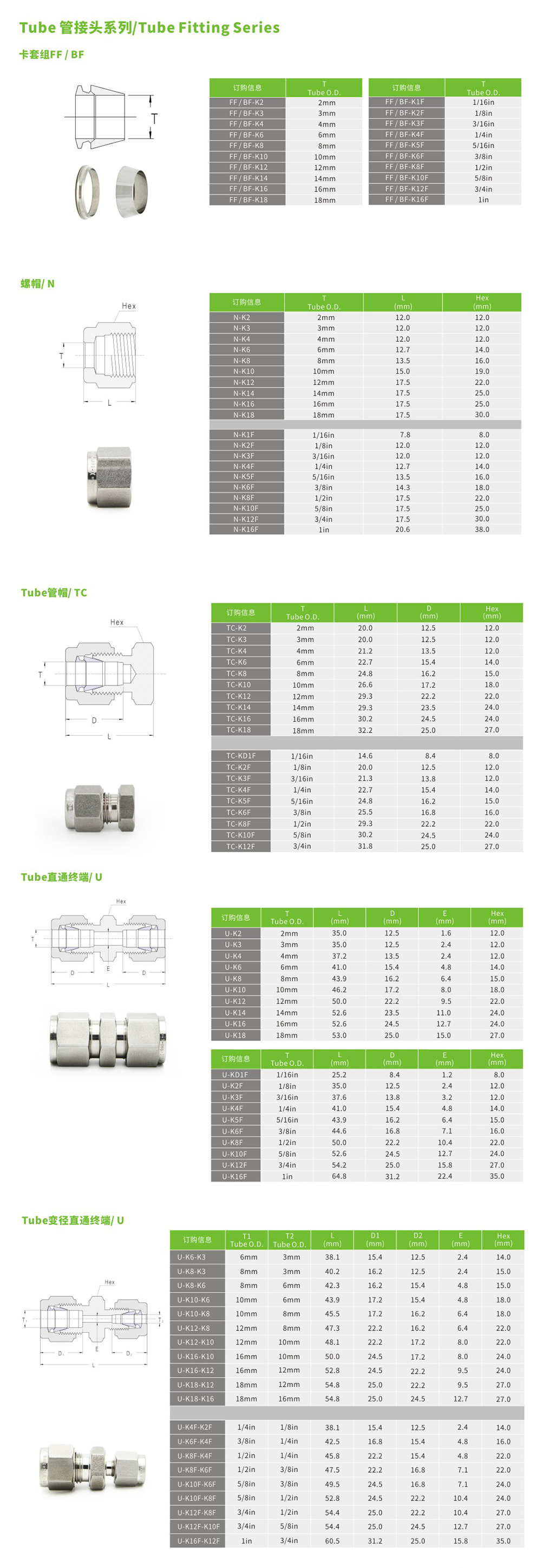

1.      后卡套/ BF                                                           前卡套 /FF







订购信息	T				订购信息	T
	Tube O.D.					Tube O.D.
BF-K2	2mm				FF-K2	2mm
BF-K3	3mm				FF-K3	3mm
BF-K4	4mm				FF-K4	4mm
BF-K6	6mm				FF-K6	6mm
BF-K8	8mm				FF-K8	8mm
BF-K10	10mm				FF-K10	10mm
BF-K12	12mm				FF-K12	12mm
BF-K14	14mm				FF-K14	14mm
					FF-K1F	1 / 16in
BF-K2F          1 / 8in					FF-K2F           1 / 8in
BF-K4F	1 / 4in				FF-K4F	1 / 4in
BF-K6F	3 / 8in				FF-K6F	3 / 8in
BF-K8F	1 / 2in				FF-K8F	1 / 2in
BF-K12F	3 / 4in				FF-K12F	3 / 4in

2.      螺帽 / N



订购信息	T	L	Hex
	Tube  O.D.	( mm )	( mm )
N-K2	2mm	12	12
N-K3	3mm	12	12
N-K4	4mm	12	12
N-K6	6mm	12.7	14
N-K8	8mm	13.5	16
N-K10	10mm	15	19
N-K12	12mm	17.5	22
N-K14	14mm	17.5	25
N-K2F	1 / 8in	12	12
N-K4F           1 / 4in              12.7                14
N-K6F	3 / 8in	14.3	18
N-K8F	1 / 2in	17.5	22
N-K12F	3 / 4in	17.5	30

3.      Tube管帽 / TC

订购信息	T	L	D	Hex
	Tube O.D.	( mm )	( mm )	( mm )
TC-K2	2mm	20.0	12.5	12
TC-K3	3mm	20.0	12.5	12
TC-K4	4mm	21.2	13.5	12
TC-K6	6mm	22.7	15.4	14
TC-K8	8mm	24.8	16.2	15
TC-K10	10mm	26.6	17.2	18
TC-K12	12mm	29.3	22.2	22
TC-K14	14mm	29.3	23.5	24
‍‍TC-K2F‍‍	‍‍1 / 8in‍‍	‍‍20.0‍‍	‍‍12.5‍‍	‍‍12‍‍
TC-K4F	1 / 4in	21.2	15.4	14
TC-K6F	3 / 8in	25.5	16.8	16
TC-K8F	1 / 2in	29.3	22.2	22
TC-K12F	3 / 4in	29.5	24.0	27
‍	‍	‍	‍‍ ‍	‍

4.      Tube直通终端 / U



订购信息	T	L	D	E	Hex
	Tube O.D.	( mm )	( mm )	( mm )	( mm )
U-K2	2mm	35.0	12.5	1.6	12
U-K3	3mm	35.0	12.5	2.4	12
U-K4	4mm	37.2	13.5	2.4	12
U-K6	6mm	41.0	15.4	4.8	14
U-K8	8mm	43.9	16.2	6.4	15
U-K10	10mm	46.2	17.2	8.0	18
U-K12	12mm	50.0	22.2	9.5	22
U-K14	14mm	50.8	23.5	11.0	24
‍‍U-K2F‍‍	‍‍1 / 8in‍‍	‍‍35.0‍‍	‍‍12.5‍‍	‍‍2.4‍‍	‍‍12‍‍
U-K4F	1 / 4in	41.0	15.4	4.8	14
U-K6F	3 / 8in	44.6	16.8	7.1	16
U-K8F	1 / 2in	50.0	22.2	10.4	22
‍‍U-K12F‍‍	‍‍3 / 4in‍‍	‍‍53.0‍‍	24.0     ‍‍	15.8	27

5.      Tube直通变径终端 / U

订购信息	T1	T2	L	D1	D2	E	Hex
	Tube O.D.	Tube O.D.	( mm )	( mm )	( mm )	( mm )	( mm )
U-K6-K3	6mm	3mm	38.1	15.4	12.5	2.4	14
U-K8-K3	8mm	3mm	40.2	16.2	12.5	2.4	15
U-K8-K6	8mm	6mm	42.3	16.2	15.4	4.8	15
U-K10-K6	10mm	6mm	43.9	17.2	15.4	4.8	18
U-K10-K8	10mm	8mm	45.5	17.2	16.2	6.4	18
U-K12-K8	12mm	8mm	47.3	22.2	16.2	6.4	22
U-K12-K10	12mm	10mm	48.1	22.2	17.2	8.0	22
U-K4F-K2F	1 / 4in	1 / 8in	38.1	15.4	12.5	2.4	14
U-K6F-K4F	3 / 8in	1 / 4in	42.5	16.8	15.4	4.8	16
U-K8F-K4F	1 / 2in	1 / 4in	45.8	22.2	15.4	4.8	22
U-K8F-K6F	1 / 2in	3 / 8in	47.5	22.2	16.8	7.1	22
U-K12F-K8F	3 / 4in	1 / 2in	52.8	24.0	22.2	10.4	27



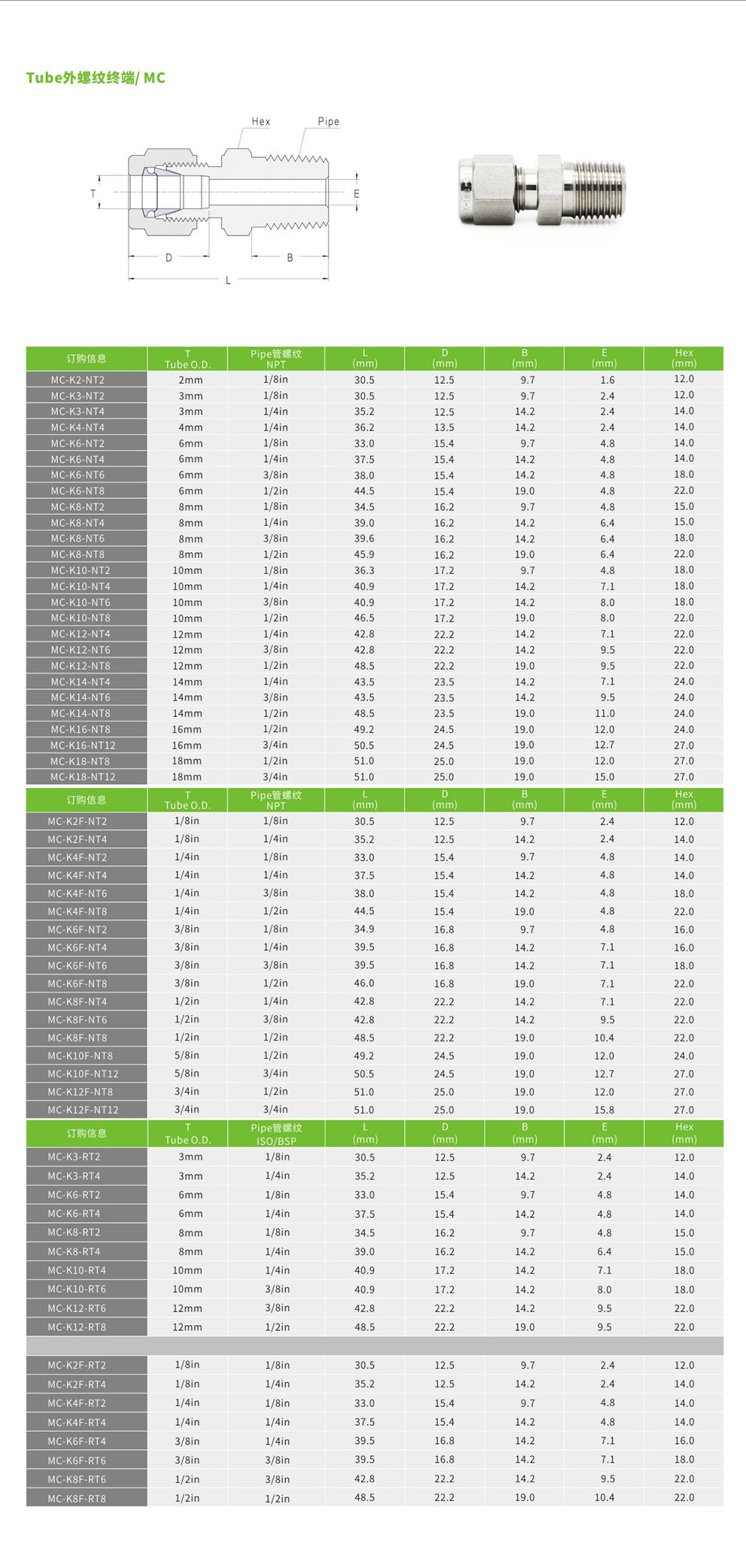

6.      Tube外锥管螺纹终端 / MC

订购信息	T	Pipe管螺纹	L	D	B	E	Hex
	Tube O.D.	NPT	( mm )	( mm )	( mm )	( mm )	( mm )
MC-K2-NT2	2mm	1 / 8in	30.5	12.5	9.7	1.6	12
MC-K3-NT2	3mm	1 / 8in	30.5	12.5	9.7	2.4	12
MC-K3-NT4	3mm	1 / 4in	35.2	12.5	14.2	2.4	14
MC-K4-NT4	4mm	1 / 4in	36.2	13.5	14.2	2.4	14
MC-K6-NT2	6mm	1 / 8in	33.0	15.4	9.7	4.8	14
MC-K6-NT4	6mm	1 / 4in	37.5	15.4	14.2	4.8	14
MC-K6-NT6	6mm	3 / 8in	38.0	15.4	14.2	4.8	18
MC-K6-NT8	6mm	1 / 2in	44.5	15.4	19.0	4.8	22
MC-K8-NT2	8mm	1 / 8in	34.5	16.2	9.7	4.8	15
MC-K8-NT4	8mm	1 / 4in	39.0	16.2	14.2	6.4	15
MC-K8-NT6	8mm	3 / 8in	39.6	16.2	14.2	6.4	18
MC-K8-NT8	8mm	1 / 2in	45.9	16.2	19.0	6.4	22
MC-K10-NT2	10mm	1 / 8in	36.3	17.2	9.7	4.8	18
MC-K10-NT4	10mm	1 / 4in	40.9	17.2	14.2	7.1	18
MC-K10-NT6	10mm	3 / 8in	40.9	17.2	14.2	8.0	18
MC-K10-NT8	10mm	1 / 2in	46.5	17.2	19.0	8.0	22
MC-K12-NT4	12mm	1 / 4in	42.8	22.2	14.2	7.1	22
MC-K12-NT6	12mm	3 / 8in	42.8	22.2	14.2	9.5	22
MC-K12-NT8	12mm	1 / 2in	48.5	22.2	19.0	9.5	22
MC-K14-NT4	14mm	1 / 4in	43.5	23.5	14.2	7.1	24
MC-K14-NT6	14mm	3 / 8in	43.5	23.5	14.2	9.5	24
MC-K14-NT8	14mm	1 / 2in	48.5	23.5	19.0	11.0	24
MC-K2F-NT2	1 / 8in	1 / 8in	30.5	12.5	9.7	2.4	12
MC-K2F-NT4	1 / 8in	1 / 4in	35.2	12.5	14.2	2.4	14
MC-K4F-NT2	1 / 4in	1 / 8in	33.0	15.4	9.7	4.8	14
MC-K4F-NT4	1 / 4in	1 / 4in	37.5	15.4	14.2	4.8	14
MC-K4F-NT6	1 / 4in	3 / 8in	38.0	15.4	14.2	4.8	18
MC-K4F-NT8	1 / 4in	1 / 2in	44.5	15.4	19.0	4.8	22
MC-K6F-NT2	3 / 8in	1 / 8in	34,9	16.8	9.7	4.8	16
MC-K6F-NT4	3 / 8in	1 / 4in	39.5	16.8	14.2	7.1	16
MC-K6F-NT6	3 / 8in	3 / 8in	39.5	16.8	14.2	7.1	18
MC-K6F-NT8	3 / 8in	1 / 2in	46.0	16.8	19.0	7.1	22
MC-K8F-NT4	1 / 2in	1 / 4in	42.8	22.2	14.2	7.1	22
MC-K8F-NT6	1 / 2in	3 / 8in	42.8	22.2	14.2	9.5	22
MC-K8F-NT8	1 / 2in	1 / 2in	48.5	22.2	19.0	10.4	22
MC-K12F-NT8	3 / 4in	1 / 2in	50.0	24.0	19.0	12.0	27
MC-K12F-NT12	3 / 4in	3 / 4in	50.0	24.0	19.0	15.8	27

订购信息	T	Pipe管螺纹	L	D	B	E	Hex
	Tube O.D.	ISO / BSP	( mm )	( mm )	( mm )	( mm )	( mm )
MC-K2-RT2	2mm	1 / 8in	30.5	12.5	9.7	1.6	12
MC-K3-RT2	3mm	1 / 8in	30.5	12.5	9.7	2.4	12
MC-K3-RT4	3mm	1 / 4in	35.2	12.5	14.2	2.4	14
MC-K4-RT4	4mm	1 / 4in	36.2	13.5	14.2	2.4	14
MC-K6-RT2	6mm	1 / 8in	33.0	15.4	9.7	4.8	14
MC-K6-RT4	6mm	1 / 4in	37.5	15.4	14.2	4.8	14
MC-K6-RT6	6mm	3 / 8in	38.0	15.4	14.2	4.8	18
MC-K6-RT8	6mm	1 / 2in	44.5	15.4	19.0	4.8	22
MC-K8-RT2	8mm	1 / 8in	34.5	16.2	9.7	4.8	15
MC-K8-RT4	8mm	1 / 4in	39.0	16.2	14.2	6.4	15
MC-K8-RT6	8mm	3 / 8in	39.6	16.2	14.2	6.4	18
MC-K8-RT8	8mm	1 / 2in	45.9	16.2	19.0	6.4	22
MC-K10-RT2	10mm	1 / 8in	36.3	17.2	9.7	4.8	18
MC-K10-RT4	10mm	1 / 4in	40.9	17.2	14.2	7.1	18
MC-K10-RT6	10mm	3 / 8in	40.9	17.2	14.2	8.0	18
MC-K10-RT8	10mm	1 / 2in	46.5	17.2	19.0	8.0	22
MC-K12-RT4	12mm	1 / 4in	42.8	22.2	14.2	7.1	22
MC-K12-RT6	12mm	3 / 8in	42.8	22.2	14.2	9.5	22
MC-K12-RT8	12mm	1 / 2in	48.5	22.2	19.0	9.5	22
MC-K14-RT4	14mm	1 / 4in	43.5	23.5	14.2	7.1	24
MC-K14-RT6	14mm	3 / 8in	43.5	23.5	14.2	9.5	24
MC-K14-RT8	14mm	1 / 2in	48.5	23.5	19.0	11.0	24
MC-K2F-RT2	1 / 8in	1 / 8in	30.5	12.5	9.7	2.4	12
MC-K2F-RT4	1 / 8in	1 / 4in	35.2	12.5	14.2	2.4	14
MC-K4F-RT2	1 / 4in	1 / 8in	33.0	15.4	9.7	4.8	14
MC-K4F-RT4	1 / 4in	1 / 4in	37.5	15.4	14.2	4.8	14
MC-K4F-RT6	1 / 4in	3 / 8in	38.0	15.4	14.2	4.8	18
MC-K4F-RT8	1 / 4in	1 / 2in	44.5	15.4	19.0	4.8	22
MC-K6F-RT2	3 / 8in	1 / 8in	34,9	16.8	9.7	4.8	16
MC-K6F-RT4	3 / 8in	1 / 4in	39.5	16.8	14.2	7.1	16
MC-K6F-RT6	3 / 8in	3 / 8in	39.5	16.8	14.2	7.1	18
MC-K6F-RT8	3 / 8in	1 / 2in	46.0	16.8	19.0	7.1	22
MC-K8F-RT4	1 / 2in	1 / 4in	42.8	22.2	14.2	7.1	22
MC-K8F-RT6	1 / 2in	3 / 8in	42.8	22.2	14.2	9.5	22
MC-K8F-RT8	1 / 2in	1 / 2in	48.5	22.2	19.0	10.4	22
MC-K12F-RT8	3 / 4in	1 / 2in	50.0	24.0	19.0	12.0	27
MC-K12F-RT12	3 / 4in	3 / 4in	50.0	24.0	19.0	15.8	27

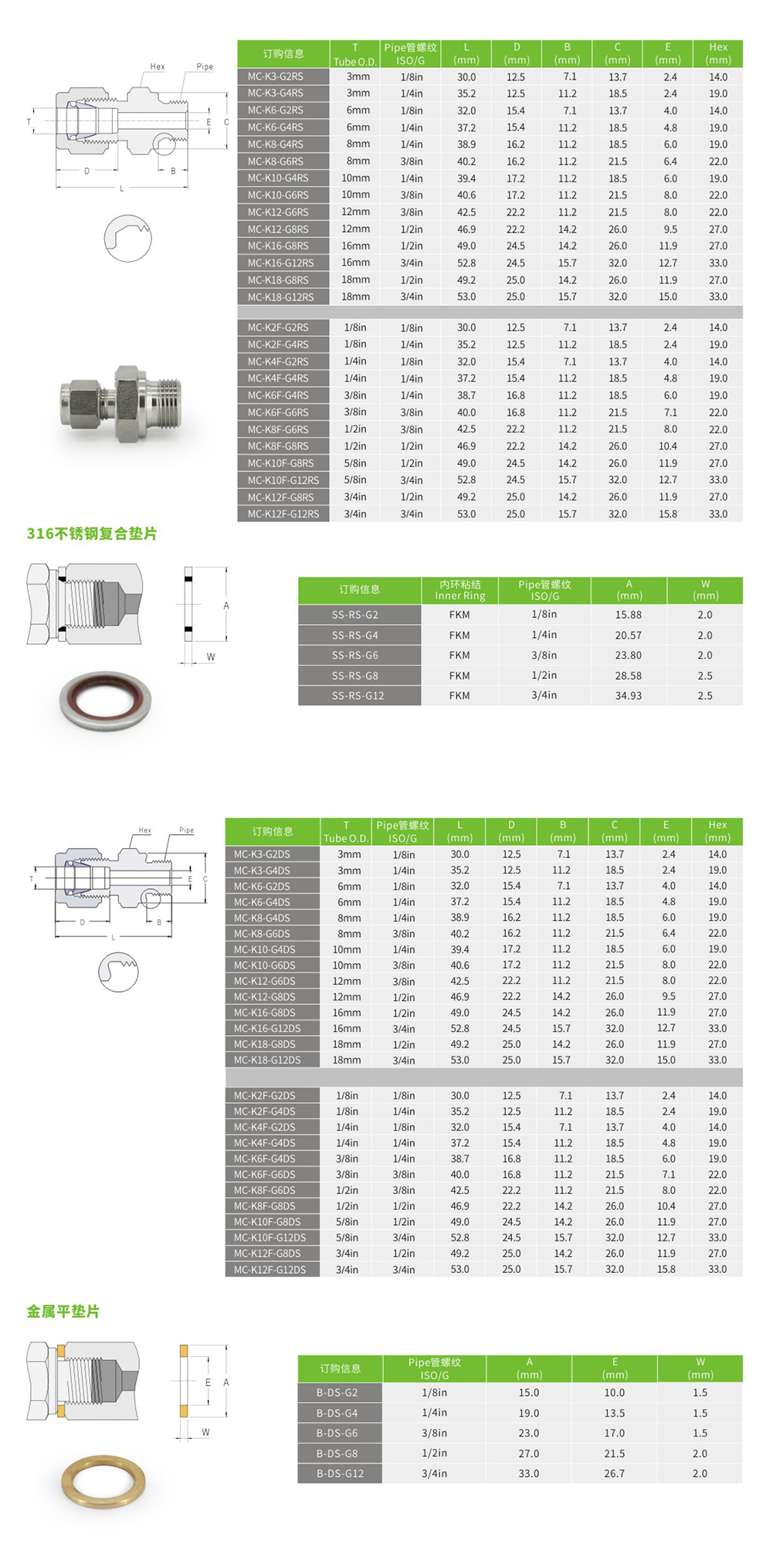

7.      Tube外直管螺纹终端 / MC

                  RS

订购信息	T	Pipe管螺纹	L	D	B	C	E	Hex
	Tube O.D.	ISO / G	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
MC-K3-G2RS	3mm	1 / 8in	30.0	12.5	7.1	13.7	2.4	14
MC-K3-G4RS	3mm	1 / 4in	35.2	12.5	11.2	18.5	2.4	19
MC-K6-G2RS	6mm	1 / 8in	32.0	15.4	7.1	13.7	4.0	14
MC-K6-G4RS	6mm	1 / 4in	37.2	15.4	11.2	18.5	4.8	19
MC-K8-G4RS	8mm	1 / 4in	38.9	16.2	11.2	18.5	6.0	19
MC-K8-G6RS	8mm	3 / 8in	40.2	16.2	11.2	21.5	6.4	22
MC-K10-G4RS	10mm	1 / 4in	39.4	17.2	11.2	18.5	6.0	19
MC-K10-G6RS	10mm	3 / 8in	40.6	17.2	11.2	21.5	8.0	22
MC-K12-G6RS	12mm	3 / 8in	42.5	22.2	11.2	21.5	8.0	22
MC-K12-G8RS	12mm	1 / 2in	46.9	22.2	14.2	26.0	9.5	27
MC-K2F-G2RS	1 / 8in	1 / 8in	30.0	12.5	7.1	13.7	2.4	14
MC-K2F-G4RS	1 / 8in	1 / 4in	35.2	12.5	11.2	18.5	2.4	19
MC-K4F-G2RS	1 / 4in	1 / 8in	32.0	15.4	7.1	13.7	4.0	14
MC-K4F-G4RS	1 / 4in	1 / 4in	37.2	15.4	11.2	18.5	4.8	19
MC-K6F-G4RS	3 / 8in	1 / 4in	38.7	16.8	11.2	18.5	6.0	19
MC-K6F-G6RS	3 / 8in	3 / 8in	40.0	16.8	11.2	21.5	7.1	22
MC-K8F-G6RS	1 / 2in	3 / 8in	42.5	22.2	11.2	21.5	8.0	22
MC-K8F-G8RS	1 / 2in	1 / 2in	46.9	22.2	14.2	26.0	10.4	27
MC-K12F-G8RS	3 /4in	1 / 2in	48.7	24.0	14.2	26.0	11.9	27
MC-K12F-G12RS	3 / 4in	3 / 4in	52.5	24.0	15.7	32.0	15.8	33

        316不锈钢复合垫片

订购信息	内环材料	Pipe管螺纹	A	W
	Inner Ring	ISO / G	( mm )	( mm )
SS-RS-G2-F	FKM	1 / 8in	15.8	2.0
SS-RS-G4-F	FKM	1 / 4in	20.6	2.0
SS-RS-G6-F	FKM	3 / 8in	23.8	2.0
SS-RS-G8-F	FKM	1 / 2in	28.6	2.5
SS-RS-G12-F	FKM	3 / 4in	35.0	2.5

                 DS

订购信息	T	Pipe管螺纹	L	D	B	C	E	Hex
	Tube O.D.	ISO / G	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
MC-K3-G2DS	3mm	1 / 8in	30.0	12.5	7.1	13.7	2.4	14
MC-K3-G4DS	3mm	1 / 4in	35.2	12.5	11.2	18.5	2.4	19
MC-K6-G2DS	6mm	1 / 8in	32.0	15.4	7.1	13.7	4.0	14
MC-K6-G4DS	6mm	1 / 4in	37.2	15.4	11.2	18.5	4.8	19
MC-K8-G4DS	8mm	1 / 4in	38.9	16.2	11.2	18.5	6.0	19
MC-K8-G6DS	8mm	3 / 8in	40.2	16.2	11.2	21.5	6.4	22
MC-K10-G4DS	10mm	1 / 4in	39.4	17.2	11.2	18.5	6.0	19
MC-K10-G6DS	10mm	3 / 8in	40.6	17.2	11.2	21.5	8.0	22
MC-K12-G6DS	12mm	3 / 8in	42.5	22.2	11.2	21.5	8.0	22
MC-K12-G8DS	12mm	1 / 2in	46.9	22.2	14.2	26.0	9.5	27
MC-K2F-G2DS	1 / 8in	1 / 8in	30.0	12.5	7.1	13.7	2.4	14
MC-K2F-G4DS	1 / 8in	1 / 4in	35.2	12.5	11.2	18.5	2.4	19
MC-K4F-G2DS	1 / 4in	1 / 8in	32.0	15.4	7.1	13.7	4.0	14
MC-K4F-G4DS	1 / 4in	1 / 4in	37.2	15.4	11.2	18.5	4.8	19
MC-K6F-G4DS	3 / 8in	1 / 4in	38.7	16.8	11.2	18.5	6.0	19
MC-K6F-G6DS	3 / 8in	3 / 8in	40.0	16.8	11.2	21.5	7.1	22
MC-K8F-G6DS	1 / 2in	3 / 8in	42.5	22.2	11.2	21.5	8.0	22
MC-K8F-G8DS	1 / 2in	1 / 2in	46.9	22.2	14.2	26.0	10.4	27
MC-K12F-G8DS	3 / 4in	1 / 2in	48.7	24.0	14.2	26.0	11.9	27
MC-K12F-G12DS	3 / 4in	3 / 4in	52.5	24.0	15.7	32.0	15.8	33

黄铜平垫片

订购信息	Pipe管螺纹	A	E	W
	ISO / G	( mm )	( mm )	( mm )
B-DS-G2	1 / 8in	15.0	10.0	1.5
B-DS-G4	1 / 4in	19.0	13.5	1.5
B-DS-G6	3 / 8in	23.0	17.0	1.5
B-DS-G8	1 / 2in	27.0	21.5	2.0
B-DS-G12	3 / 4in	33.0	26.7	2.0

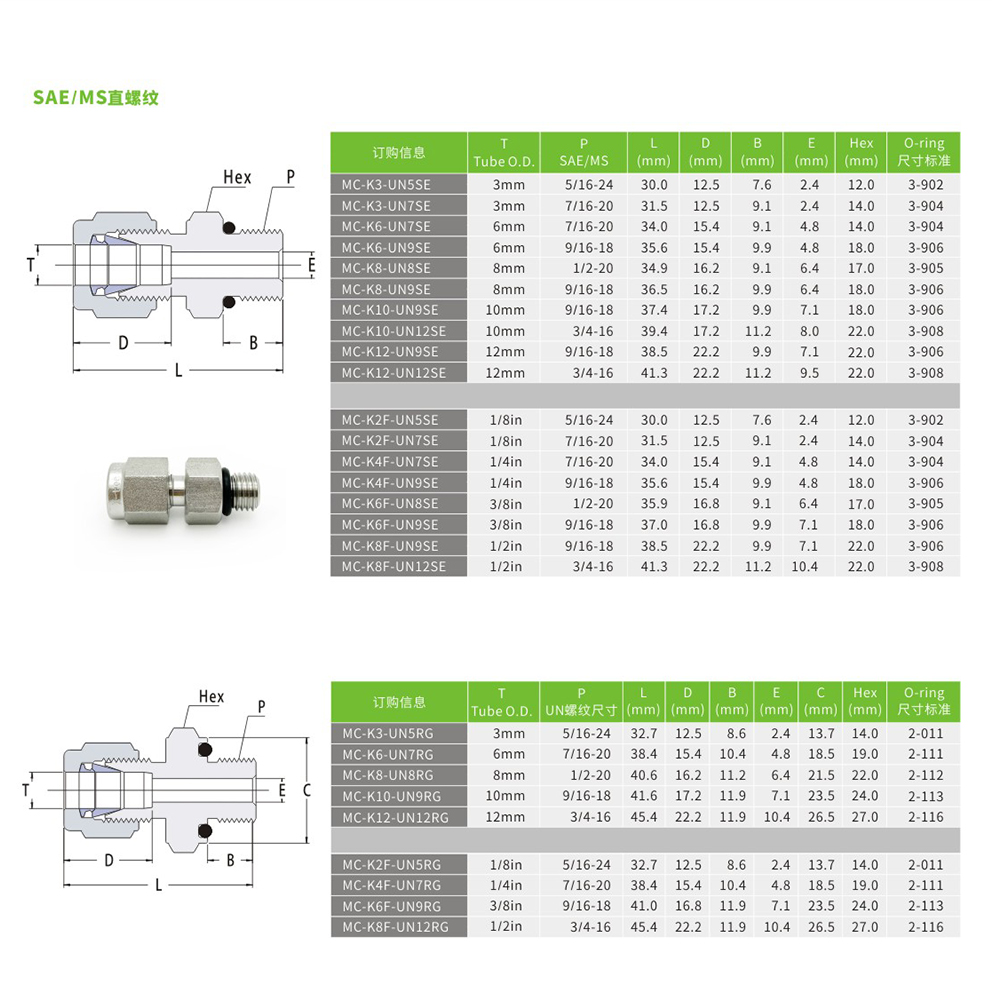

8.       SAE ̸ MS直螺纹



订购信息	T	P	L	D	B	E	Hex	O-ring
	Tube O.D.	UN美制螺纹	( mm )	( mm )	( mm )	( mm )	( mm )	AS568标准
MC-K3-UN5SE	3mm	5 / 16−24	30.0	12.5	7.6	2.4	12	-902
MC-K3-UN7SE	3mm	7 / 16−20	31.5	12.5	9.1	2.4	14	-904
MC-K6-UN7SE	6mm	7 / 16−20	33.7	15.4	9.1	4.8	14	-904
MC-K6-UN9SE	6mm	9 / 16−18	35.2	15.4	9.9	4.8	18	-906
MC-K8-UN8SE	8mm	1 / 2−20	35.2	16.2	9.1	6.4	17	-905
MC-K8-UN9SE	8mm	9 / 16−18	36.5	16.2	9.9	6.4	18	-906
MC-K10-UN9SE	10mm	9 / 16−18	37.4	17.2	9.9	7.1	18	-906
MC-K10-UN12SE	10mm	3 / 4−16	39.4	17.2	11.2	8.0	22	-908
MC-K12-UN9SE	12mm	9 / 16−18	38.5	22.2	9.9	7.1	22	-906
MC-K12-UN12SE	12mm	3 / 4−16	41.3	22.2	11.2	9.5	22	-908
MC-K2F-UN5SE	1 / 8in	5 / 16−24	30.0	12.5	7.6	2.4	12	-902
MC-K2F-UN7SE	1 / 8in	7 / 16−20	31.5	12.5	9.1	2.4	14	-904
MC-K4F-UN7SE	1 / 4in	7 / 16−20	33.7	15.4	9.1	4.8	14	-904
MC-K4F-UN9SE	1 / 4in	9 / 16−18	35.2	15.4	9.1	6.4	16	-906
MC-K6F-UN8SE	3 / 8in	1 / 2−20	35.9	16.8	9.9	7.1	17	-905
MC-K6F-UN9SE	3 / 8in	9 / 16−18	36.7	16.8	11.2	7.1	22	-906
MC-K8F-UN9SE	1 / 2in	9 / 16−18	38.5	22.2	9.9	7.1	22	-906
MC-K8F-UN12SE	1 / 2in	3 / 4−16	41.3	22.2	11.2	10.4	22	-908



订购信息	T	P	L	D	B	E	C	Hex	O-ring
	Tube O.D.	UN美制螺纹	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )	AS568标准
MC-K3-UN5RG	3mm	5 / 16−24	32.7	12.5	8.6	2.4	13.7	14	-011
MC-K6-UN7RG	6mm	7 / 16−20	38.0	15.4	10.4	4.8	18.5	19	-111
MC-K8-UN8RG	6mm	1 / 2−20	41.2	16.2	11.2	6.4	21.5	22	-112
MC-K10-UN9RG	10mm	9 / 16−18	42.6	17.2	11.9	7.1	23.7	24	-113
MC-K12-UN12RG	12mm	3 / 4−16	45.4	22.2	11.9	10.4	26.5	27	-116
MC-K2F-UN5RG	1 / 8in	5 / 16−24	32.7	12.5	8.6	2.4	13.7	14	-011
MC-K4F-UN7RG	1 / 4in	7 / 16−20	38.0	15.4	10.4	4.8	18.5	19	-111
MC-K6F-UN9RG	3 / 8in	9 / 16−18	42.0	16.8	11.9	7.1	23.7	24	-113
MC-K8F-UN12RG	1 / 2in	3 / 4−16	45.4	22.2	11.9	10.4	26.5	27	-116

9.      Tube仪表终端 / GU

订购信息	T	P	L	D	B	E1	E2	Hex
	Tube O.D.	M米制螺纹	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
GU-K3-M14D	3mm	M14×1.5	34.5	12.5	10.0	2.4	5.2	18
GU-K6-M14D	6mm	M14×1.5	33.5	15.4	10.0	5.2	5.2	18
GU-K6-M20D	6mm	M20×1.5	41.5	15.4	15.0	4.8	6.2	24
GU-K8-M14D	8mm	M14×1.5	35.3	16.2	10.0	5.2	5.2	18
GU-K8-M20D	8mm	M20×1.5	39.8	16.2	15.0	6.2	6.2	24
GU-K10-M14D	10mm	M14×1.5	36.1	17.2	10.0	5.2	5.2	18
GU-K10-M20D	10mm	M20×1.5	41.6	17.2	15.0	6.2	6.2	24
GU-K12-M20D	12mm	M20×1.5	45.0	22.2	15.0	6.2	6.2	24
GU-K2F-M14D	1 / 8in	M14×1.5	34.5	12.5	10.0	2.4	5.2	18
GU-K4F-M14D	1 / 4in	M14×1.5	33.5	15.4	10.0	5.2	5.2	18
GU-K4F-M20D	1 / 4in	M20×1.5	41.5	15.4	15.0	4.8	6.2	24
GU-K6F-M14D	3 / 8in	M14×1.5	35.5	16.8	10.0	5.2	5.2	18
GU-K6F-M20D	3 / 8in	M20×1.5	41.0	16.8	15.0	6.2	6.2	24
GU-K8F-M20D	1 / 2in	M20×1.5	45.0	22.2	15.0	6.2	6.2	24

10.      Tube内锥管螺纹终端 / FC

订购信息	T	Pipe管螺纹	L	D	B	E	Hex
	Tube O.D.	NPT	( mm )	( mm )	( mm )	( mm )	( mm )
FC-K3-NT2	3mm	1 / 8in	28.6	12.5	10.4	2.4	14
FC-K3-NT4	3mm	1 / 4in	33.5	12.5	15.0	2.4	19
FC-K6-NT2	6mm	1 / 8in	31.0	15.4	10.4	4.8	14
FC-K6-NT4	6mm	1 / 4in	35.5	15.4	15.0	4.8	19
FC-K6-NT6	6mm	3 / 8in	37.2	15.4	15.0	4.8	22
FC-K6-NT8	6mm	1 / 2in	42.1	15.4	19.8	4.8	27
FC-K8-NT2	8mm	1 / 8in	32.4	16.2	10.4	6.4	15
FC-K8-NT4	8mm	1 / 4in	37.4	16.2	15.0	6.4	19
FC-K8-NT6	8mm	3 / 8in	38.9	16.2	15.0	6.4	22
FC-K8-NT8	8mm	1 / 2in	43.8	16.2	19.8	6.4	27
FC-K10-NT4	10mm	1 / 4in	37.8	17.2	15.0	8.0	19
FC-K10-NT6	10mm	3 / 8in	39.4	17.2	15.0	8.0	22
FC-K10-NT8	10mm	1 / 2in	44.4	17.2	19.8	8.0	27
FC-K12-NT4	12mm	1 / 4in	40.0	22.2	15.0	9.5	22
FC-K12-NT6	12mm	3 / 8in	41.5	22.2	15.0	9.5	22
FC-K12-NT8	12mm	1 / 2in	46.3	22.2	19.8	9.5	27
FC-K2F-NT2	1 / 8in	1 / 8in	28.6	12.5	10.4	2.4	14
FC-K2F-NT4	1 / 8in	1 / 4in	33.5	12.5	15.0	2.4	19
FC-K4F-NT2	1 / 4in	1 / 8in	31.0	15.4	10.4	4.8	14
FC-K4F-NT4	1 / 4in	1 / 4in	35.5	15.4	15.0	4.8	19
FC-K4F-NT6	1 / 4in	3 / 8in	37.2	15.4	15.0	4.8	22
FC-K4F-NT8	1 / 4in	1 / 2in	42.1	15.4	19.8	4.8	27
FC-K6F-NT4	3 / 8in	1 / 4in	37.2	16.8	15.0	7.1	19
FC-K6F-NT6	3 / 8in	3 / 8in	40.0	16.8	15.0	7.1	22
FC-K6F-NT8	3 / 8in	1 / 2in	43.8	16.8	19.8	7.1	27
FC-K8F-NT4	1 / 2in	1 / 4in	40.0	22.2	15.0	10.4	22
FC-K8F-NT6	1 / 2in	3 / 8in	41.5	22.2	15.0	10.4	22
FC-K8F-NT8	1 / 2in	1 / 2in	46.3	22.2	19.8	10.4	27
FC-K12F-NT8	3 / 4in	1 / 2in	46.5	24.0	19.8	15.8	27
FC-K12F-NT12	3 / 4in	3 / 4in	47.8	24.0	20.6	15.8	33

订购信息	T	Pipe管螺纹	L	D	B	E	Hex
	Tube O.D.	ISO / BSP	( mm )	( mm )	( mm )	( mm )	( mm )
FC-K3-RT2	3mm	1 / 8in	28.6	12.5	10.4	2.4	14
FC-K3-RT4	3mm	1 / 4in	33.5	12.5	15.0	2.4	19
FC-K6-RT2	6mm	1 / 8in	31.0	15.4	10.4	4.8	14
FC-K6-RT4	6mm	1 / 4in	35.5	15.4	15.0	4.8	19
FC-K6-RT6	6mm	3 / 8in	37.2	15.4	15.0	4.8	22
FC-K6-RT8	6mm	1 / 2in	42.1	15.4	19.8	4.8	27
FC-K8-RT2	8mm	1 / 8in	32.4	16.2	10.4	6.4	15
FC-K8-RT4	8mm	1 / 4in	37.4	16.2	15.0	6.4	19
FC-K8-RT6	8mm	3 / 8in	38.9	16.2	15.0	6.4	22
FC-K8-RT8	8mm	1 / 2in	43.8	16.2	19.8	6.4	27
FC-K10-RT4	10mm	1 / 4in	37.8	17.2	15.0	8.0	19
FC-K10-RT6	10mm	3 / 8in	39.4	17.2	15.0	8.0	22
FC-K10-RT8	10mm	1 / 2in	44.4	17.2	19.8	8.0	27
FC-K12-RT4	12mm	1 / 4in	40.0	22.2	15.0	9.5	22
FC-K12-RT6	12mm	3 / 8in	41.5	22.2	15.0	9.5	22
FC-K12-RT8	12mm	1 / 2in	46.3	22.2	19.8	9.5	27
FC-K2F-RT2	1 / 8in	1 / 8in	28.6	12.5	10.4	2.4	14
FC-K2F-RT4	1 / 8in	1 / 4in	33.5	12.5	15.0	2.4	19
FC-K4F-RT2	1 / 4in	1 / 8in	31.0	15.4	10.4	4.8	14
FC-K4F-RT4	1 / 4in	1 / 4in	35.5	15.4	15.0	4.8	19
FC-K4F-RT6	1 / 4in	3 / 8in	37.2	15.4	15.0	4.8	22
FC-K4F-RT8	1 / 4in	1 / 2in	42.1	15.4	19.8	4.8	27
FC-K6F-RT4	3 / 8in	1 / 4in	37.2	16.8	15.0	7.1	19
FC-K6F-RT6	3 / 8in	3 / 8in	40.0	16.8	15.0	7.1	22
FC-K6F-RT8	3 / 8in	1 / 2in	43.8	16.8	19.8	7.1	27
FC-K8F-RT4	1 / 2in	1 / 4in	40.0	22.2	15.0	10.4	22
FC-K8F-RT6	1 / 2in	3 / 8in	41.5	22.2	15.0	10.4	22
FC-K8F-RT8	1 / 2in	1 / 2in	46.3	22.2	19.8	10.4	27
FC-K12F-RT8	3 / 4in	1 / 2in	46.5	24.0	19.8	15.8	27
FC-K12F-RT12	3 / 4in	3 / 4in	47.8	24.0	20.6	15.8	33

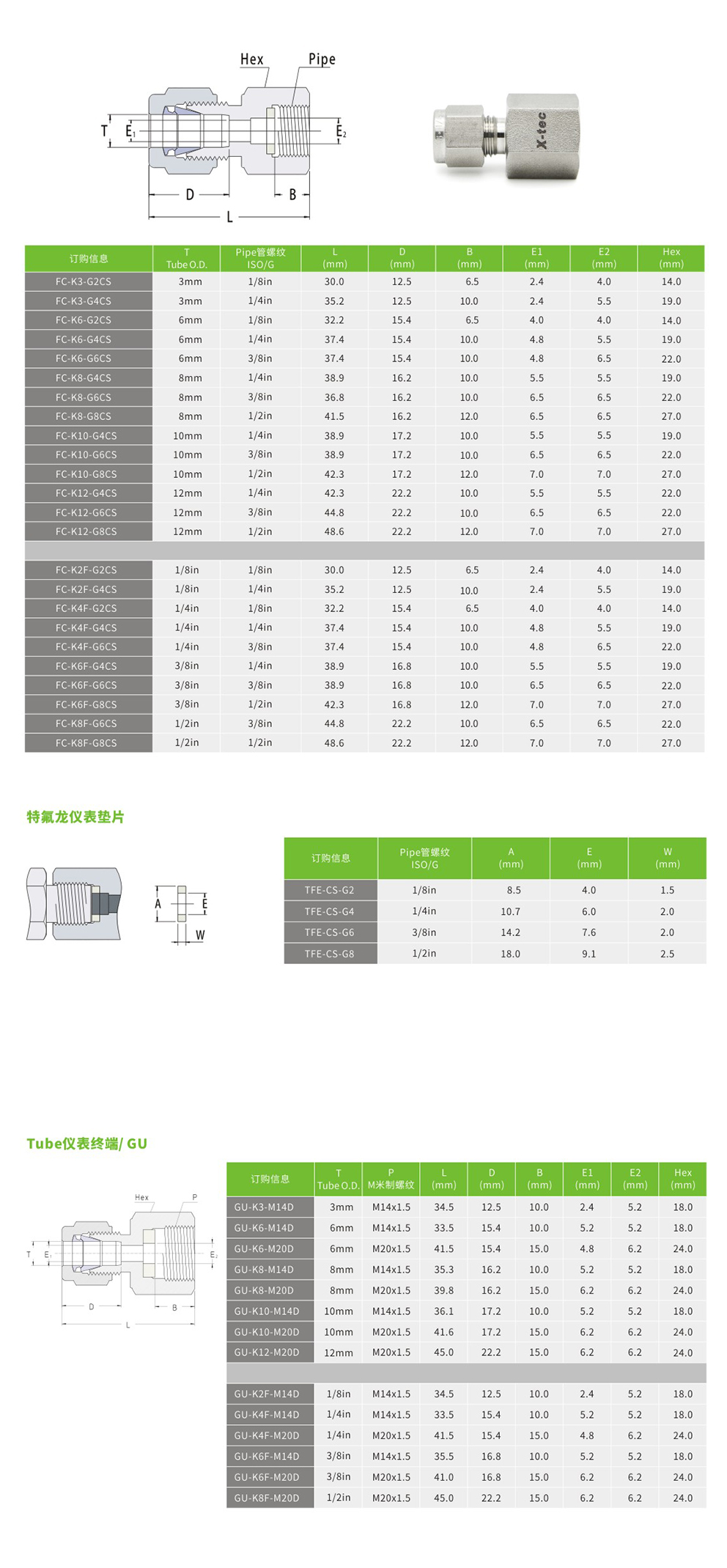

                 CS

订购信息	T	Pipe管螺纹	L	D	B	E1	E2	Hex
	Tube O.D.	ISO ̸ G	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
FC-K3-G2CS	3mm	1 ̸ 8in	30.0	12.5	6.5	2.4	4.0	14
FC-K3-G4CS	3mm	1 ̸ 4in	35.2	12.5	10.0	2.4	5.5	19
FC-K6-G2CS	6mm	1 ̸ 8in	32.2	15.4	6.5	4.0	4.0	14
FC-K6-G4CS	6mm	1 ̸ 4in	37.4	15.4	10.0	4.8	5.5	19
FC-K6-G6CS	6mm	3 ̸ 8in	37.4	15.4	10.0	4.8	6.5	22
FC-K8-G4CS	8mm	1 ̸ 4in	38.9	16.2	10.0	5.5	5.5	19
FC-K8-G6CS	8mm	3 ̸ 8in	36.8	16.2	10.0	6.5	6.5	22
FC-K8-G8CS	8mm	1 ̸ 2in	41.5	16.2	12.0	6.5	6.5	27
FC-K10-G4CS	10mm	1 ̸ 4in	38.9	17.2	10.0	5.5	5.5	19
FC-K10-G6CS	10mm	3 ̸ 8in	38.9	17.2	10.0	6.5	6.5	22
FC-K10-G8CS	10mm	1 ̸ 2in	42.3	17.2	12.0	7.0	7.0	27
FC-K12-G4CS	12mm	1 ̸ 4in	42.3	22.2	10.0	5.5	5.5	22
FC-K12-G6CS	12mm	3 ̸ 8in	44.8	22.2	10.0	6.5	6.5	22
FC-K12-G8CS	12mm	1 ̸ 2in	48.6	22.2	12.0	7.0	7.0	27
FC-K2F-G2CS	1 ̸ 8in	1 ̸ 8in	30.0	12.5	6.5	2.4	4.0	14
FC-K2F-G4CS	1 ̸ 8in	1 ̸ 4in	35.2	12.5	10.0	2.4	5.5	19
FC-K4F-G2CS	1 ̸ 4in	1 ̸ 8in	32.2	15.4	6.5	4.0	4.0	14
FC-K4F-G4CS	1 ̸ 4in	1 ̸ 4in	37.4	15.4	10.0	4.8	5.5	19
FC-K4F-G6CS	1 ̸ 4in	3 ̸ 8in	37.4	15.4	10.0	4.8	6.5	22
FC-K6F-G4CS	3 ̸ 8in	1 ̸ 4in	38.9	16.8	10.0	5.5	5.5	19
FC-K6F-G6CS	3 ̸ 8in	3 ̸ 8in	38.9	16.8	10.0	6.5	6.5	22
FC-K6F-G8CS	3 ̸ 8in	1 ̸ 2in	42.3	16.8	12.0	7.0	7.0	27
FC-K8F-G6CS	1 ̸ 2in	3 ̸ 8in	44.8	22.2	10.0	6.5	6.5	22
FC-K8F-G8CS	1 ̸ 2in	1 ̸ 2in	48.6	22.2	12.0	7.0	7.0	27

特氟龙仪表垫片

订购信息	Pipe管螺纹	A	E	W
	ISO ̸ G	( mm )	( mm )	( mm )
TFE-CS-G2	1 ̸ 8in	8.5	4.0	1.5
TFE-CS-G4	1 ̸ 4in	10.7	6.0	2.0
TFE-CS-G6	3 ̸ 8in	14.2	7.6	2.0
TFE-CS-G8	1 ̸ 2in	18.0	9.1	2.5

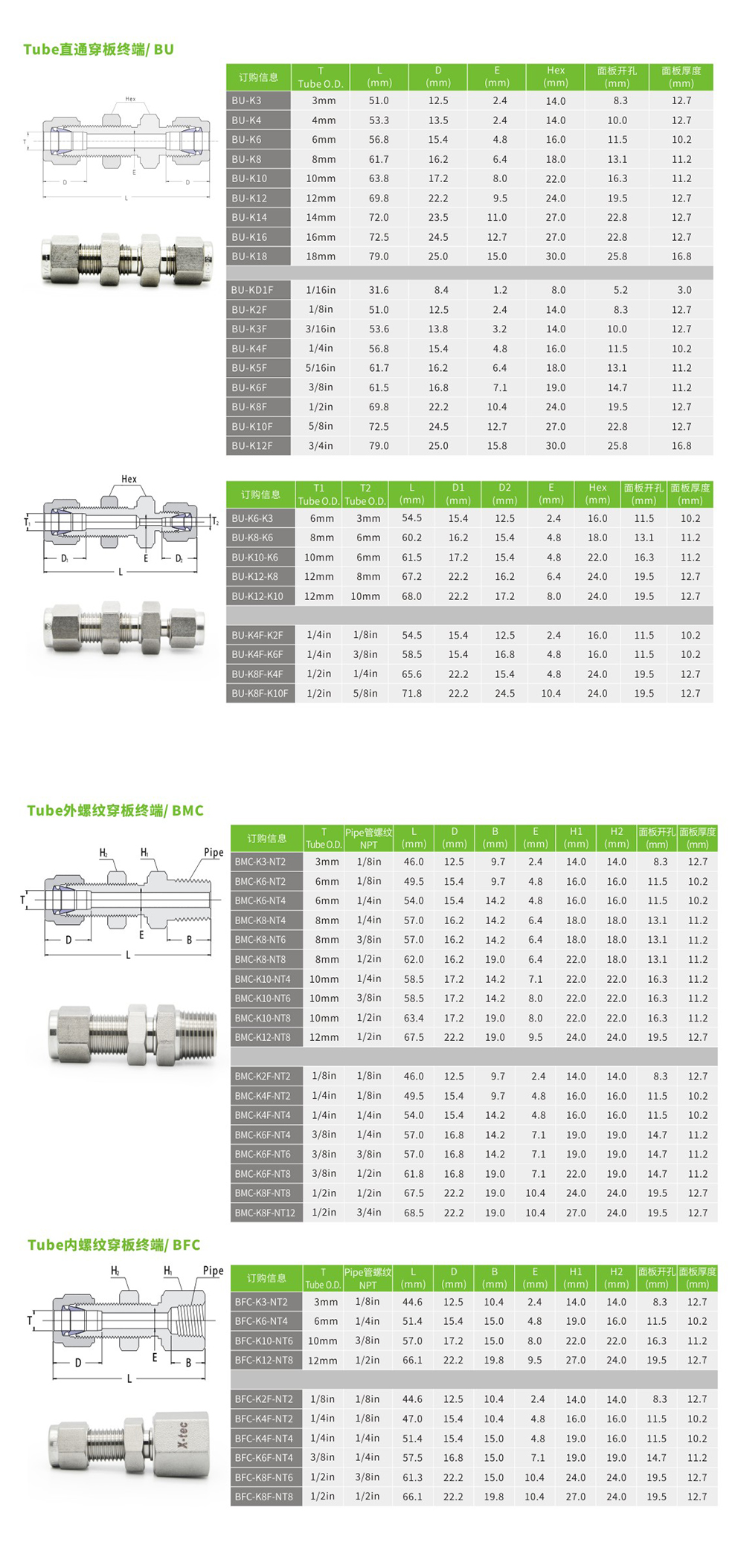

11.       Tube直通穿板终端 / BU

订购信息	T	L	D	E	Hex	面板开孔	面板厚度
	Tube O.D.	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
BU-K3	3mm	51.0	12.5	2.4	14	8.3	12.7
BU-K4	4mm	53.3	13.5	2.4	14	9.9	12.7
BU-K6	6mm	56.8	15.4	4.8	16	11.5	10.2
BU-K8	8mm	61.7	16.2	6.4	18	13.1	11.2
BU-K10	10mm	63.8	17.2	8.0	22	16.3	11.2
BU-K12	12mm	69.8	22.2	9.5	24	19.5	12.7
BU-K14	14mm	72.0	23.5	11.0	27	22.8	12.7
BU-K2F	1 / 8in	51.0	12.5	2.4	14	8.3	12.7
BU-K4F	1 / 4in	56.8	15.4	4.8	16	11.5	10.2
BU-K6F	3 / 8in	61.5	16.8	7.1	19	14.7	11.2
BU-K8F	1 / 2in	69.8	22.2	10.4	24	19.5	12.7
BU-K12F	3 / 4in	78.5	24.0	15.8	30	25.8	16.8

12.       Tube直通变径穿板终端 / BU



订购信息	T1	T2	L	D1	D2	E	Hex	面板开孔	面板厚度
	Tube O.D.	Tube O.D.	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
BU-K6-K3	6mm	3mm	54.5	15.4	12.5	2.4	16	11.5	10.2
BU-K8-K6	8mm	6mm	60.2	16.2	15.4	4.8	18	13.1	11.2
BU-K10-K6	10mm	6mm	61.5	17.2	15.4	4.8	22	16.3	11.2
BU-K12-K8	12mm	8mm	67.2	22.2	16.2	6.4	24	19.5	12.7
BU-K12-K10	12mm	10mm	68.0	22.2	17.2	8.0	24	19.5	12.7
BU-K4F-K2F	1 / 4in	1 / 8in	54.5	15.4	12.5	2.4	16	11.5	10.2
BU-K4F-K6F	1 / 4in	3 / 8in	58.5	15.4	16.8	4.8	16	11.5	10.2
BU-K8F-K4F	1 / 2in	1 / 4in	65.6	22.2	15.4	4.8	24	19.5	12.7
BU-K8F-K10F	1 / 2in	5 / 8in	71.0	22.2	23.5	10.4	24	19.5	12.7

13.        Tube外螺纹穿板终端 / BMC



订购信息	T	Pipe管螺纹	L	D	B	E	H1	H2	面板开孔	面板厚度
	Tube O.D.	NPT	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
BMC-K3-NT2	3mm	1 / 8in	46.0	12.5	9.7	2.4	14	14	8.3	12.7
BMC-K6-NT2	6mm	1 / 8in	49.5	15.4	9.7	4.8	16	16	11.5	10.2
BMC-K6-NT4	6mm	1 / 4in	54.0	15.4	14.2	4.8	16	16	11.5	10.2
BMC-K8-NT4	8mm	1 / 4in	57.0	16.2	14.2	6.4	18	18	13.1	11.2
BMC-K8-NT6	8mm	3 / 8in	57.0	16.2	14.2	6.4	18	18	13.1	11.2
BMC-K8-NT8	8mm	1 / 2in	62.0	16.2	19.0	6.4	22	18	13.1	11.2
BMC-K10-NT4	10mm	1 / 4in	58.5	17.2	14.2	7.1	22	22	16.3	11.2
BMC-K10-NT6	10mm	3 / 8in	58.5	17.2	14.2	8.0	22	22	16.3	11.2
BMC-K10-NT8	10mm	1 / 2in	63.4	17.2	19.0	8.0	22	22	16.3	11.2
BMC-K12-NT8	12mm	1 / 2in	67.5	22.2	19.0	9.5	24	24	19.5	12.7
BMC-K2F-NT2	1 / 8in	1 / 8in	46.0	12.5	9.7	2.4	14	14	8.3	12.7
BMC-K4F-NT2	1 / 4in	1 / 8in	49.5	15.4	9.7	4.8	16	16	11.5	10.2
BMC-K4F-NT4	1 / 4in	1 / 4in	54.0	15.4	14.2	4.8	16	16	11.5	10.2
BMC-K6F-NT4	3 / 8in	1 / 4in	57.0	16.8	14.2	7.1	19	19	14.7	11.2
BMC-K6F-NT6	3 / 8in	3 / 8in	57.0	16.8	14.2	7.1	19	19	14.7	11.2
BMC-K6F-NT8	3 / 8in	1 / 2in	61.8	16.8	19.0	7.1	22	19	14.7	11.2
BMC-K8F-NT8	1 / 2in	1 / 2in	67.5	22.2	19.0	10.4	24	24	19.5	12.7
BMC-K8F-NT12	1 / 2in	3 / 4in	68.5	22.2	19.0	10.4	27	24	19.5	12.7

14.        Tube内螺纹穿板终端 / BFC



订购信息	T	Pipe管螺纹	L	D	B	E	H1	H2	面板开孔	面板厚度
	Tube O.D.	NPT	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
BFC-K3-NT2	3mm	1 / 8in	44.6	12.5	10.4	2.4	14	14	8.3	12.7
BFC-K6-NT4	6mm	1 / 4in	51.4	15.4	15.0	4.8	19	16	11.5	10.2
BFC-K10-NT6	10mm	3 / 8in	57.0	17.2	15.0	8.0	22	22	16.3	11.2
BFC-K12-NT8	12mm	1 / 2in	66.1	22.2	19.8	9.5	27	24	19.5	12.7
BFC-K2F-NT2	1 / 8in	1 / 8in	44.6	12.5	10.4	2.4	14	14	8.3	12.7
BFC-K4F-NT2	1 / 4in	1 / 8in	47.0	15.4	10.4	4.8	16	16	11.5	10.2
BFC-K4F-NT4	1 / 4in	1 / 4in	51.4	15.4	15.0	4.8	19	16	11.5	10.2
BFC-K6F-NT4	3 / 8in	1 / 4in	57.5	16.8	15.0	7.1	19	19	14.7	11.2
BFC-K8F-NT6	1 / 2in	3 / 8in	61.3	22.2	15.0	10.4	24	24	19.5	12.7
BFC-K8F-NT8	1 / 2in	1 / 2in	66.1	22.2	19.8	10.4	27	24	19.5	12.7

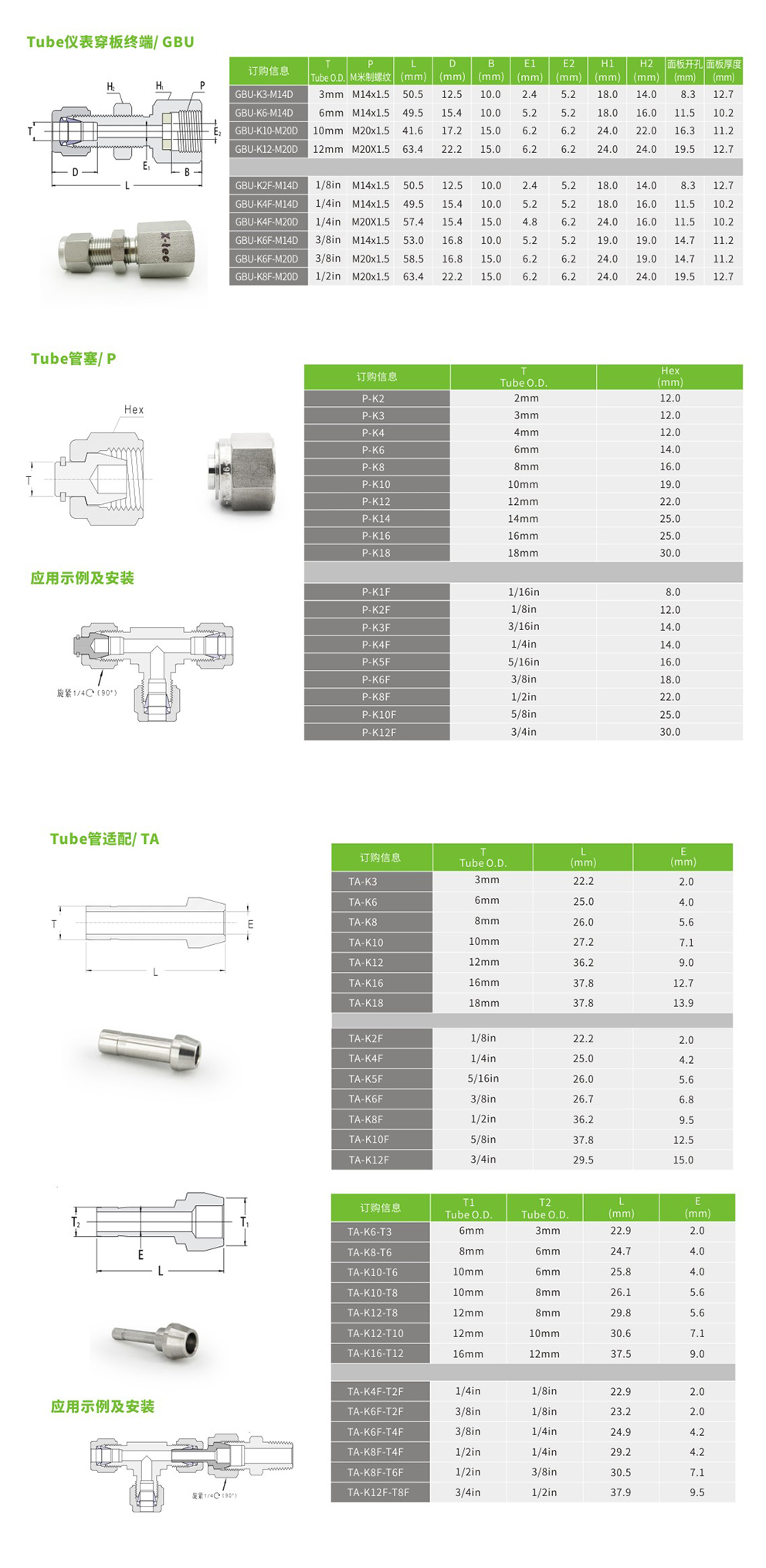

15.       Tube仪表穿板终端 / GBU



订购信息	T	P	L	D	B	E1	E2	H1	H2	面板开孔	面板厚度
	Tube O.D.	M米制螺纹	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
GBU-K3-M14D	3mm	M14×1.5	50.5	12.5	10.0	2.4	5.2	18	14	8.3	12.7
GBU-K6-M14D	6mm	M14×1.5	49.5	15.4	10.0	5.2	5.2	18	16	11.5	10.2
GBU-K10-M20D	10mm	M20×1.5	41.6	17.2	15.0	6.2	6.2	24	22	16.3	11.2
GBU-K12-M20D	12mm	M20×1.5	63.4	22.2	15.0	6.2	6.2	24	24	19.5	12.7
GBU-K2F-M14D	1 / 8in	M14×1.5	50.5	12.5	10.0	2.4	5.2	18	14	8.3	12.7
GBU-K4F-M14D	1 / 4in	M14×1.5	49.5	15.4	10.0	5.2	5.2	18	16	11.5	10.2
GBU-K4F-M20D	1 / 4in	M20×1.5	57.4	15.4	15.0	4.8	6.2	24	16	11.5	10.2
GBU-K6F-M14D	3 / 8in	M14×1.5	53.0	16.8	10.0	5.2	5.2	19	19	14.7	11.2
GBU-K6F-M20D	3 / 8in	M20×1.5	58.5	16.8	15.0	6.2	6.2	24	19	14.7	11.2
GBU-K8F-M20D	1 / 2in	M20×1.5	63.4	22.2	15.0	6.2	6.2	24	24	19.5	12.7

16.       Tube管塞 / P

订购信息	T	Hex
	Tube O.D.	( mm )
P-K2	2mm	12
P-K3	3mm	12
P-K4	4mm	12
P-K6	6mm	14
P-K8	8mm	16
P-K10	10mm	19
P-K12	12mm	22
P-K14	14mm	25
P-K2F	1 / 8in	12
P-K4F	1 / 4in	14
P-K6F	3 / 8in	18
P-K8F	1 / 2in	22
P-K12F	3 / 4in	30

应用示例及安装

17.       Tube管适配 / TA

订购信息	T	L	E
	Tube O.D.	( mm )	( mm )
TA-K3	3mm	22.2	2.0
TA-K6	6mm	25.0	4.0
TA-K8	8mm	26.0	5.6
TA-K10	10mm	27.2	7.1
TA-K12	12mm	36.2	9.0
TA-K2F	1 / 8in	22.2	2.0
TA-K4F	1 / 4in	25.0	4.2
TA-K6F	3 / 8in	26.7	6.8
TA-K8F	1 / 2in	36.2	9.5
TA-K12F	3 / 4in	29.5	15.0

订购信息	T1	T2	L	E
	Tube O.D.	Tube O.D.	( mm )	( mm )
TA-K6-T3	6mm	3mm	22.9	2.0
TA-K8-T6	8mm	6mm	24.7	4.0
TA-K10-T6	10mm	6mm	25.8	4.0
TA-K10-T8	10mm	8mm	26.1	5.6
TA-K12-T6	12mm	6mm	29.1	4.0
TA-K12-T8	12mm	8mm	29.8	5.6
TA-K12-T10	12mm	10mm	30.6	7.1
TA-K4F-T2F	1 / 4in	1 / 8in	22.9	2.0
TA-K6F-T2F	3 / 8in	1 / 8in	23.2	2.0
TA-K6F-T4F	3 / 8in	1 / 4in	24.9	4.2
TA-K8F-T4F	1 / 2in	1 / 4in	29.2	4.2
TA-K8F-T6F	1 / 2in	3 / 8in	30.5	7.1
TA-K12F-T8F	3 / 4in	1 / 2in	37.9	9.5

应用示例及安装

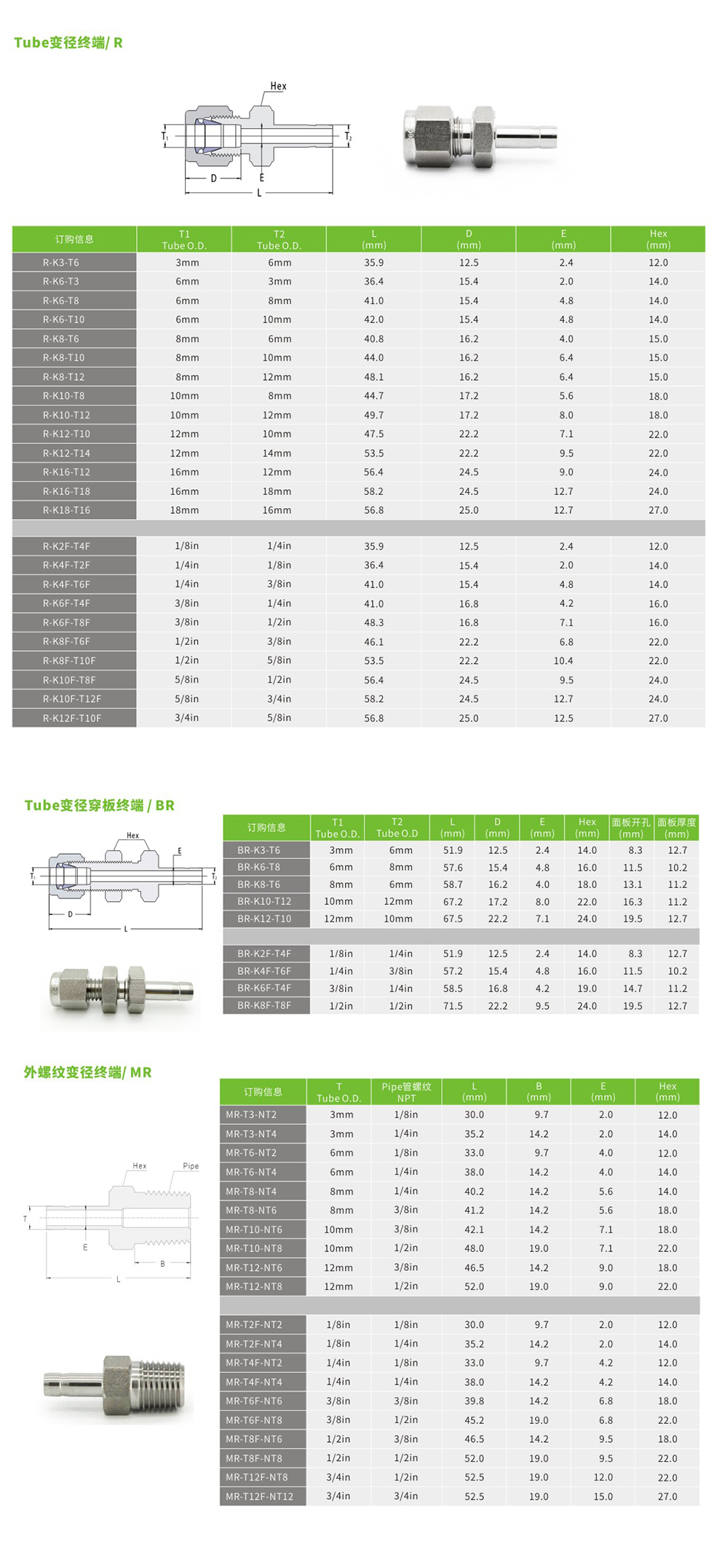

18.       Tube变径终端 / R

订购信息	T1	T2	L	D	E	Hex
	Tube O.D.	Tube O.D.	( mm )	( mm )	( mm )	( mm )
R-K2-T3	2mm	3mm	33.5	12.5	1.6	12
R-K3-T6	3mm	6mm	35.9	12.5	2.4	12
R-K4-T6	4mm	6mm	37.0	13.5	2.4	12
R-K6-T3	6mm	3mm	36.4	15.4	2.0	14
R-K6-T8	6mm	8mm	41.0	15.4	4.8	14
R-K6-T10	6mm	10mm	42.0	15.4	4.8	14
R-K8-T6	8mm	6mm	40.8	16.2	4.0	15
R-K8-T10	8mm	10mm	44.0	16.2	6.4	15
R-K8-T12	8mm	12mm	48.1	16.2	6.4	15
R-K10-T8	10mm	8mm	44.7	17.2	5.6	18
R-K10-T12	10mm	12mm	49.7	17.2	8.0	18
R-K12-T10	12mm	10mm	47.5	22.2	7.1	22
R-K12-T16	12mm	16mm	53.5	22.2	9.5	22
R-K2F-T4F	1 / 8in	1 / 4in	35.9	12.5	2.4	12
R-K4F-T2F	1 / 4in	1 / 8in	36.4	15.4	2.0	14
R-K4F-T6F	1 / 4in	3 / 8in	41.0	15.4	4.8	14
R-K4F-T8F	1 / 4in	1 / 2in	46.0	15.4	4.8	14
R-K6F-T4F	3 / 8in	1 / 4in	41.0	16.8	4.2	16
R-K6F-T8F	3 / 8in	1 / 2in	48.3	16.8	7.1	16
R-K8F-T6F	1 / 2in	3 / 8in	46.1	22.2	6.8	22

19.       Tube变径穿板终端 / BR



订购信息	T1	T2	L	D	D2	E	Hex	面板开孔	面板厚度
	Tube O.D.	Tube O.D.	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
BR-K3-T6	3mm	6mm	51.9	12.5	12.5	2.4	14	8.3	12.7
BR-K6-T8	6mm	8mm	57.6	15.4	15.4	4.8	16	11.5	10.2
BR-K8-T6	8mm	6mm	58.7	16.2	15.4	4.0	18	13.1	11.2
BR-K10-T12	10mm	12mm	67.2	17.2	16.2	8.0	22	16.3	11.2
BR-K12-T10	12mm	10mm	67.5	22.2	17.2	7.1	24	19.5	12.7
BR-K2F-T4F	1 / 8in	1 / 4in	51.9	12.5	12.5	2.4	14	8.3	12.7
BR-K4F-T6F	1 / 4in	3 / 8in	57.2	15.4	16.8	4.8	16	11.5	10.2
BR-K6F-T4F	3 / 8in	1 / 4in	58.5	16.8	15.4	4.2	19	14.7	11.2
BR-K8F-T8F	1 / 2in	1 / 2in	71.5	22.2	23.5	9.5	24	19.5	12.7

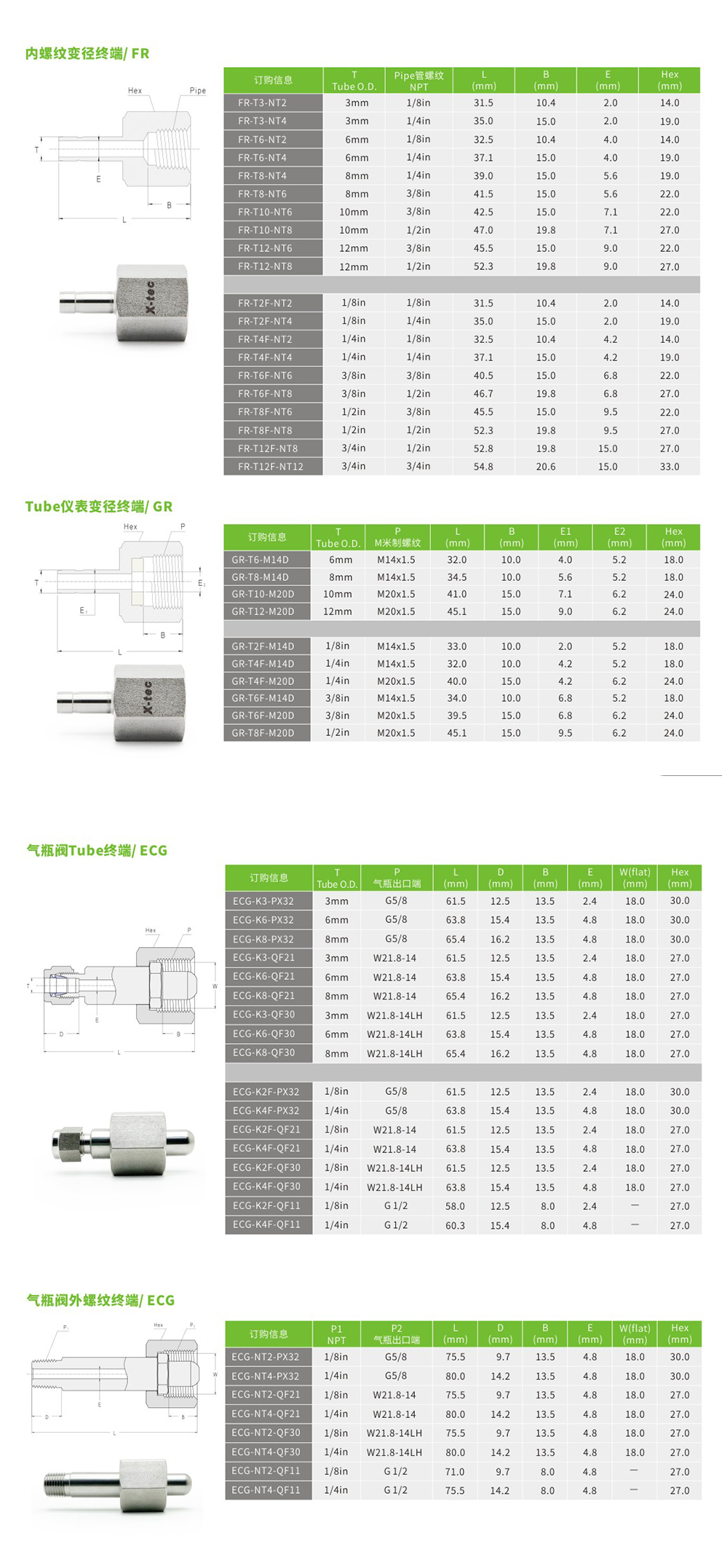

20.       气瓶阀Tube终端/ ECG



订购信息	T	P	L	D	B	E	W (Flat)	Hex
	Tube O.D.	气瓶阀出口螺纹	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
ECG-K3-PX32	3mm	G 5 ̸ 8	61.5	12.5	13.5	2.4	18	28
ECG-K6-PX32	6mm	G 5 ̸ 8	63.8	15.4	13.5	4.8	18	28
ECG-K8-PX32	8mm	G 5 ̸ 8	65.4	16.2	13.5	4.8	18	28
ECG-K3-QF21	3mm	W21.8 - 14	61.5	12.5	13.5	2.4	18	27
ECG-K6-QF21	6mm	W21.8 - 14	63.8	15.4	13.5	4.8	18	27
ECG-K8-QF21	8mm	W21.8 - 14	65.4	16.2	13.5	4.8	18	27
ECG-K3-QF30	3mm	W21.8 - 14LH	61.5	12.5	13.5	2.4	18	27
ECG-K6-QF30	6mm	W21.8 - 14LH	63.8	15.4	13.5	4.8	18	27
ECG-K8-QF30	8mm	W21.8 - 14LH	65.4	16.2	13.5	4.8	18	27
ECG-K2F-PX32	1 ̸ 8in	G 5 ̸ 8	61.5	12.5	13.5	2.4	18	28
ECG-K4F-PX32	1 ̸ 4in	G 5 ̸ 8	63.8	15.4	13.5	4.8	18	28
ECG-K2F-QF21	1 ̸ 8in	W21.8 - 14	61.5	12.5	13.5	2.4	18	27
ECG-K4F-QF21	1 ̸ 4in	W21.8 - 14	63.8	15.4	13.5	4.8	18	27
ECG-K2F-QF30	1 ̸ 8in	W21.8 - 14LH	61.5	12.5	13.5	2.4	18	27
ECG-K4F-QF30	1 ̸ 4in	W21.8 - 14LH	63.8	15.4	13.5	4.8	18	27
ECG-K2F-QF11	1 ̸ 8in	G 1 ̸ 2	58.0	12.5	8.0	2.4	—	27
ECG-K4F-QF11	1 ̸ 4in	G 1 ̸ 2	60.3	15.4	8.0	4.8	—	27

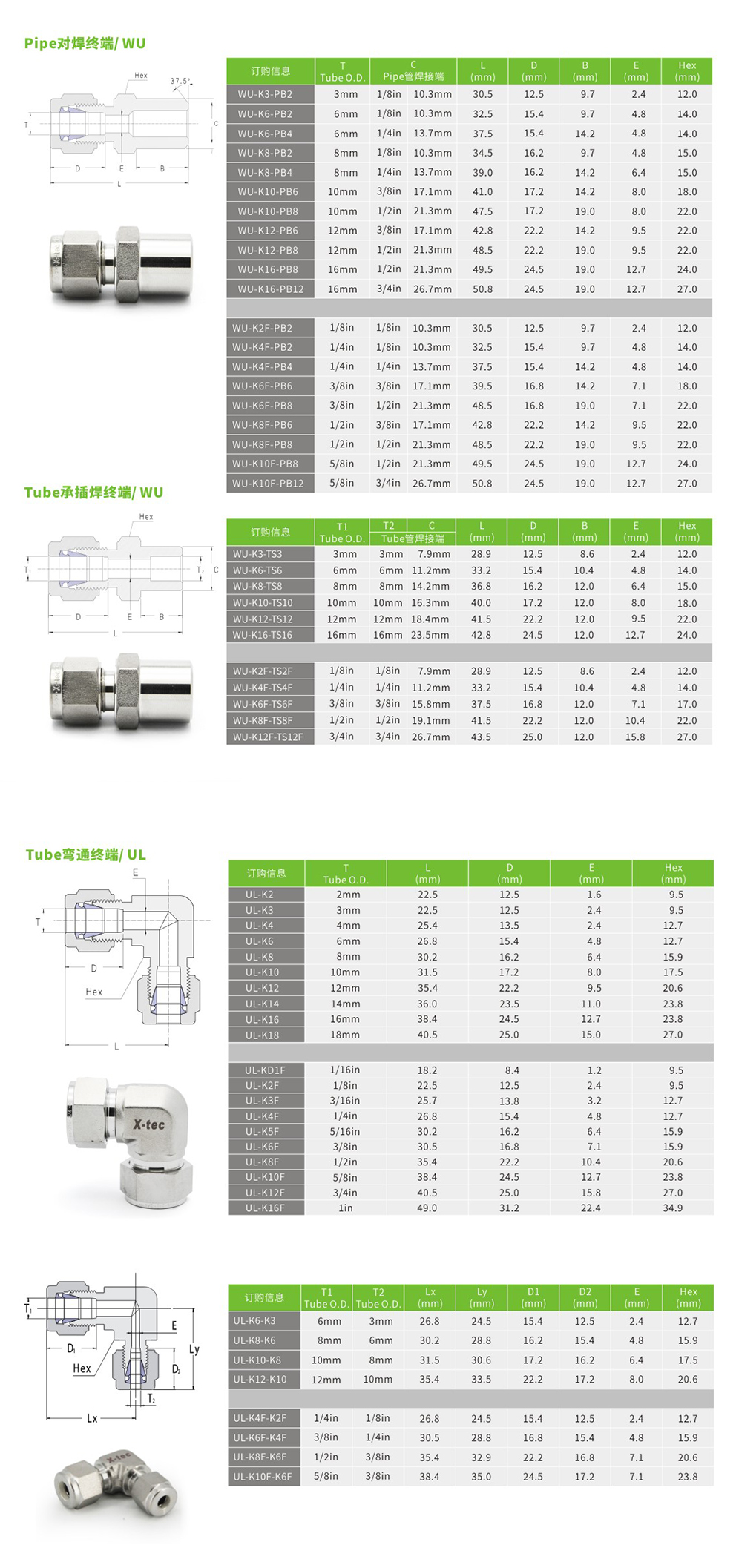

21.       Tube对焊终端 / WU



订购信息	T	C		L	D	B	E	Hex
	Tube O.D.	Pipe管焊接端		( mm )	( mm )	( mm )	( mm )	( mm )
WU-K3-PB2	3mm	1 / 8in	10.3mm	30.5	12.5	9.7	2.4	12
WU-K6-PB2	6mm	1 / 8in	10.3mm	32.5	15.4	9.7	4.8	14
WU-K6-PB4	6mm	1 / 4in	13.7mm	37.5	15.4	14.2	4.8	14
WU-K8-PB2	8mm	1 / 8in	10.3mm	34.5	16.2	9.7	4.8	15
WU-K8-PB4	8mm	1 / 4in	13.7mm	39.0	16.2	14.2	6.4	15
WU-K8-PB6	8mm	3 / 8in	17.1mm	40.0	16.2	14.2	6.4	18
WU-K10-PB4	10mm	1 / 4in	13.7mm	41.0	17.2	14.2	7.1	18
WU-K10-PB6	10mm	3 / 8in	17.1mm	41.0	17.2	14.2	8.0	18
WU-K10-PB8	10mm	1 / 2in	21.3mm	47.5	17.2	19.0	8.0	22
WU-K12-PB4	12mm	1 / 4in	13.7mm	42.8	22.2	14.2	7.1	22
WU-K12-PB6	12mm	3 / 8in	17.1mm	42.8	22.2	14.2	9.5	22
WU-K12-PB8	12mm	1 / 2in	21.3mm	48.5	22.2	19.0	9.5	22
WU-K2F-PB2	1 / 8in	1 / 8in	10.3mm	30.5	12.5	9.7	2.4	12
WU-K4F-PB2	1 / 4in	1 / 8in	10.3mm	32.5	15.4	9.7	4.8	14
WU-K4F-PB4	1 / 4in	1 / 4in	13.7mm	37.5	15.4	14.2	4.8	14
WU-K4F-PB6	1 / 4in	3 / 8in	17.1mm	39.5	15.4	14.2	4.8	18
WU-K6F-PB4	3 / 8in	1 / 4in	13.7mm	39.5	16.8	14.2	7.1	16
WU-K6F-PB6	3 / 8in	3 / 8in	17.1mm	39.5	16.8	14.2	7.1	18
WU-K6F-PB8	3 / 8in	1 / 2in	21.3mm	48.5	16.8	19.0	7.1	22
WU-K8F-PB4	1 / 2in	1 / 4in	13.7mm	42.8	22.2	14.2	7.1	22
WU-K8F-PB6	1 / 2in	3 / 8in	17.1mm	42.8	22.2	14.2	9.5	22
WU-K8F-PB8	1 / 2in	1 / 2in	21.3mm	48.5	22.2	19.0	9.5	22

22.       Tube承插焊终端 / WU



订购信息	T1	T2	C	L	D	B	E	Hex
	Tube O.D.	Tube管焊接端		( mm )	( mm )	( mm )	( mm )	( mm )
WU-K3-TS3	3mm	3mm	7.9mm	28.9	12.5	8.6	2.4	12
WU-K6-TS6	6mm	6mm	11.2mm	33.2	15.4	10.4	4.8	14
WU-K8-TS8	8mm	8mm	14.2mm	36.8	16.2	12.0	6.4	15
WU-K10-TS10	10mm	10mm	16.3mm	40.0	17.2	12.0	8.0	18
WU-K12-TS12	12mm	12mm	18.4mm	41.5	22.2	12.0	9.5	22
WU-K2F-TS2F	1 / 8in	1 / 8in	7.9mm	28.9	12.5	8.6	2.4	12
WU-K4F-TS4F	1 / 4in	1 / 4in	11.2mm	33.2	15.4	10.4	4.8	14
WU-K6F-TS6F	3 / 8in	3 / 8in	15.8mm	37.5	16.8	12.0	7.1	17
WU-K8F-TS8F	1 / 2in	1 / 2in	19.1mm	41.5	22.2	12.0	10.4	22
WU-K12F-TS12F	3 / 4in	3 / 4in	26.7mm	43.0	24.0	12.0	15.8	27

23.       Tube角通终端 / UL

订购信息	T	L	D	E	Hex
	Tube O.D.	( mm )	( mm )	( mm )	( mm )
UL-K2	2mm	22.5	12.5	1.6	9.5
UL-K3	3mm	22.5	12.5	2.4	9.5
UL-K4	4mm	25.5	13.5	2.4	12.7
UL-K6	6mm	26.8	15.4	4.8	12.7
UL-K8	8mm	30.2	16.2	6.4	15.9
UL-K10	10mm	31.5	17.2	8.0	17.5
UL-K12	12mm	35.4	22.2	9.5	20.6
UL-K14	14mm	36.0	23.5	11.0	23.8
UL-K2F	1 / 8in	22.5	12.5	2.4	9.5
UL-K4F	1 / 4in	26.8	15.4	4.8	12.7
UL-K6F	3 / 8in	30.5	16.8	7.1	15.9
UL-K8F	1 / 2in	35.4	22.2	10.4	20.6
UL-K12F	3 / 4in	37.8	24.0	15.8	27

订购信息	T1	T2	Lx	Ly	D1	D2	E	Hex
	Tube O.D.	Tube O.D.	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
UL-K6-K3	6mm	3mm	26.8	24.5	15.4	12.5	2.4	12.7
UL-K8-K6	8mm	6mm	30.2	28.8	16.2	15.4	4.8	15.9
UL-K10-K8	10mm	8mm	31.5	30.6	17.2	16.2	6.4	17.5
UL-K12-K10	12mm	10mm	35.4	33.5	22.2	17.2	8.0	20.6
UL-K4F-K2F	1 / 4in	1 / 8in	26.8	24.5	15.4	12.5	2.4	12.7
UL-K6F-K4F	3 / 8in	1 / 4in	30.5	28.8	16.8	15.4	4.8	15.9
UL-K8F-K6F	1 / 2in	3 / 8in	35.4	32.9	22.2	16.8	7.1	20.6

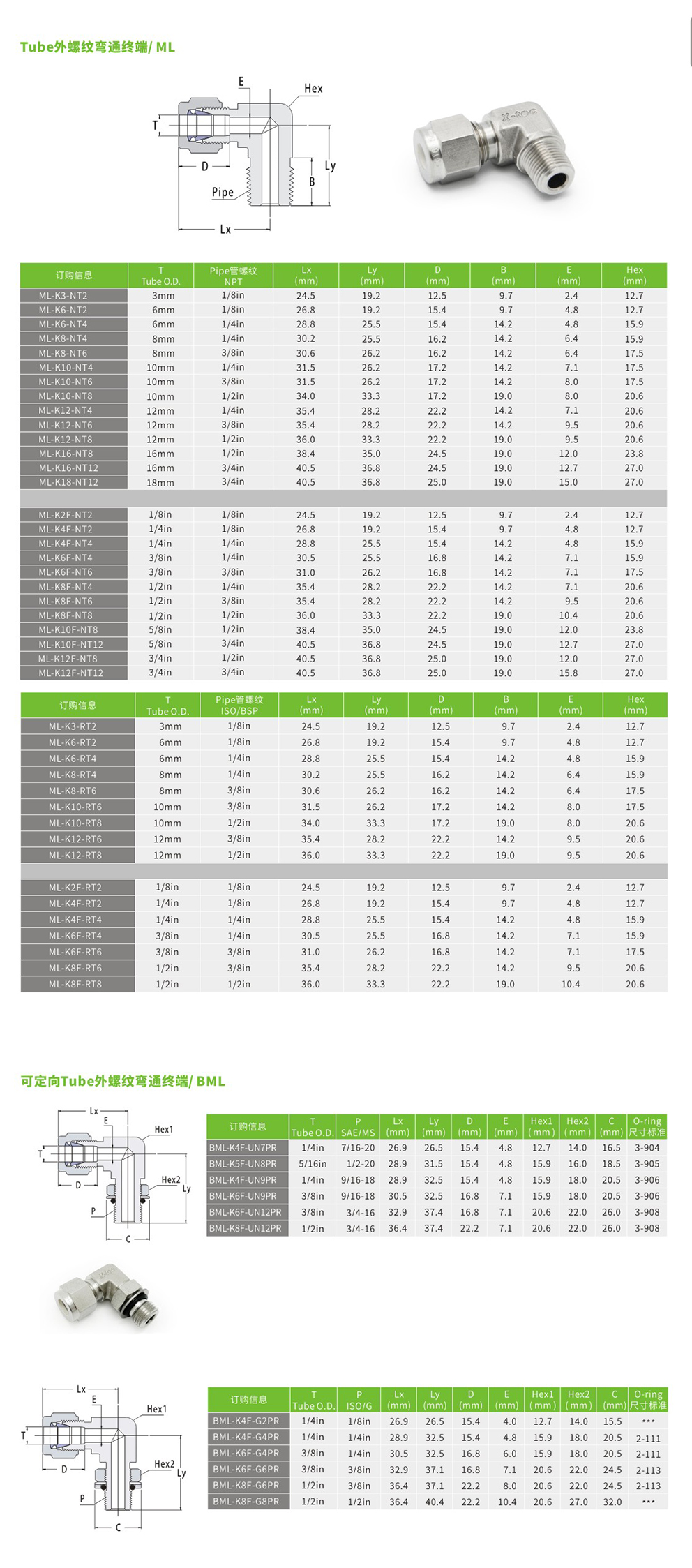

24.       Tube外螺纹角通终端 / ML



订购信息	T	Pipe管螺纹	Lx	Ly	D	B	E	Hex
	Tube O.D.	NPT	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
ML-K3-NT2	3mm	1 / 8in	24.5	19.2	12.5	9.7	2.4	12.7
ML-K6-NT2	6mm	1 / 8in	26.8	19.2	15.4	9.7	4.8	12.7
ML-K6-NT4	6mm	1 / 4in	28.8	25.5	15.4	14.2	4.8	15.9
ML-K6-NT6	6mm	3 / 8in	29.2	26.2	15.4	14.2	4.8	17.5
ML-K8-NT2	8mm	1 / 8in	28.3	21.0	16.2	9.7	4.8	15.9
ML-K8-NT4	8mm	1 / 4in	30.2	25.5	16.2	14.2	6.4	15.9
ML-K8-NT6	8mm	3 / 8in	30.6	26.2	16.2	14.2	6.4	17.5
ML-K10-NT4	10mm	1 / 4in	31.5	26.2	17.2	14.2	7.1	17.5
ML-K10-NT6	10mm	3 / 8in	31.5	26.2	17.2	14.2	8.0	17.5
ML-K10-NT8	10mm	1 / 2in	34.0	33.3	17.2	19.0	8.0	23.8
ML-K12-NT4	12mm	1 / 4in	35.4	28.2	22.2	14.2	7.1	20.6
ML-K12-NT6	12mm	3 / 8in	35.4	28.2	22.2	14.2	9.5	20.6
ML-K12-NT8	12mm	1 / 2in	36.0	33.3	22.2	19.0	9.5	23.8
ML-K2F-NT2	1 / 8in	1 / 8in	24.5	19.2	12.5	9.7	2.4	12.7
ML-K4F-NT2	1 / 4in	1 / 8in	26.8	19.2	15.4	9.7	4.8	12.7
ML-K4F-NT4	1 / 4in	1 / 4in	28.8	25.5	15.4	14.2	4.8	15.9
ML-K4F-NT6	1 / 4in	3 / 8in	29.2	26.2	15.4	14.2	4.8	17.5
ML-K6F-NT2	3 / 8in	1 / 8in	28.5	19.2	16.8	9.7	4.8	12.7
ML-K6F-NT4	3 / 8in	1 / 4in	30.5	25.5	16.8	14.2	7.1	15.9
ML-K6F-NT6	3 / 8in	3 / 8in	31.0	26.2	16.8	14.2	7.1	17.5
ML-K8F-NT4	1 / 2in	1 / 4in	35.4	28.2	22.2	14.2	7.1	20.6
ML-K8F-NT6	1 / 2in	3 / 8in	35.4	28.2	22.2	14.2	9.5	20.6
ML-K8F-NT8	1 / 2in	1 / 2in	36.0	33.3	22.2	19.0	10.4	23.8
ML-K12F-NT8	3 / 4in	1 / 2in	37.8	35.0	24.0	19.0	12.0	27.0
ML-K12F-NT12	3 / 4in	3 / 4in	37.8	35.0	24.0	19.0	15.8	27.0



订购信息	T	Pipe管螺纹	Lx	Ly	D	B	E	Hex
	Tube O.D.	ISO / BSP	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
ML-K3-RT2	3mm	1 / 8in	24.5	19.2	12.5	9.7	2.4	12.7
ML-K6-RT2	6mm	1 / 8in	26.8	19.2	15.4	9.7	4.8	12.7
ML-K6-RT4	6mm	1 / 4in	28.8	25.5	15.4	14.2	4.8	15.9
ML-K6-RT6	6mm	3 / 8in	29.2	26.2	15.4	14.2	4.8	17.5
ML-K8-RT2	8mm	1 / 8in	30.2	21.0	16.2	9.7	4.8	15.9
ML-K8-RT4	8mm	1 / 4in	30.2	25.5	16.2	14.2	6.4	15.9
ML-K8-RT6	8mm	3 / 8in	30.6	26.2	16.2	14.2	6.4	17.5
ML-K10-RT4	10mm	1 / 4in	31.5	26.2	17.2	14.2	7.1	17.5
ML-K10-RT6	10mm	3 / 8in	31.5	26.2	17.2	14.2	8.0	17.5
ML-K10-RT8	10mm	1 / 2in	34.0	33.3	17.2	19.0	8.0	23.8
ML-K12-RT4	12mm	1 / 4in	35.4	28.2	22.2	14.2	7.1	20.6
ML-K12-RT6	12mm	3 / 8in	35.4	28.2	22.2	14.2	9.5	20.6
ML-K12-RT8	12mm	1 / 2in	36.0	33.3	22.2	19.0	9.5	23.8
ML-K2F-RT2	1 / 8in	1 / 8in	24.5	19.2	12.5	9.7	2.4	12.7
ML-K4F-RT2	1 / 4in	1 / 8in	26.8	19.2	15.4	9.7	4.8	12.7
ML-K4F-RT4	1 / 4in	1 / 4in	28.8	25.5	15.4	14.2	4.8	15.9
ML-K4F-RT6	1 / 4in	3 / 8in	29.2	26.2	15.4	14.2	4.8	17.5
ML-K6F-RT2	3 / 8in	1 / 8in	28.5	19.2	16.8	9.7	4.8	12.7
ML-K6F-RT4	3 / 8in	1 / 4in	30.5	25.5	16.8	14.2	7.1	15.9
ML-K6F-RT6	3 / 8in	3 / 8in	31.0	26.2	16.8	14.2	7.1	17.5
ML-K8F-RT4	1 / 2in	1 / 4in	35.4	28.2	22.2	14.2	7.1	20.6
ML-K8F-RT6	1 / 2in	3 / 8in	35.4	28.2	22.2	14.2	9.5	20.6
ML-K8F-RT8	1 / 2in	1 / 2in	36.0	33.3	22.2	19.0	10.4	23.8
ML-K12F-RT8	3 / 4in	1 / 2in	37.8	35.0	24.0	19.0	12.0	27.0
ML-K12F-RT12	3 / 4in	3 / 4in	37.8	35.0	24.0	19.0	15.8	27.0

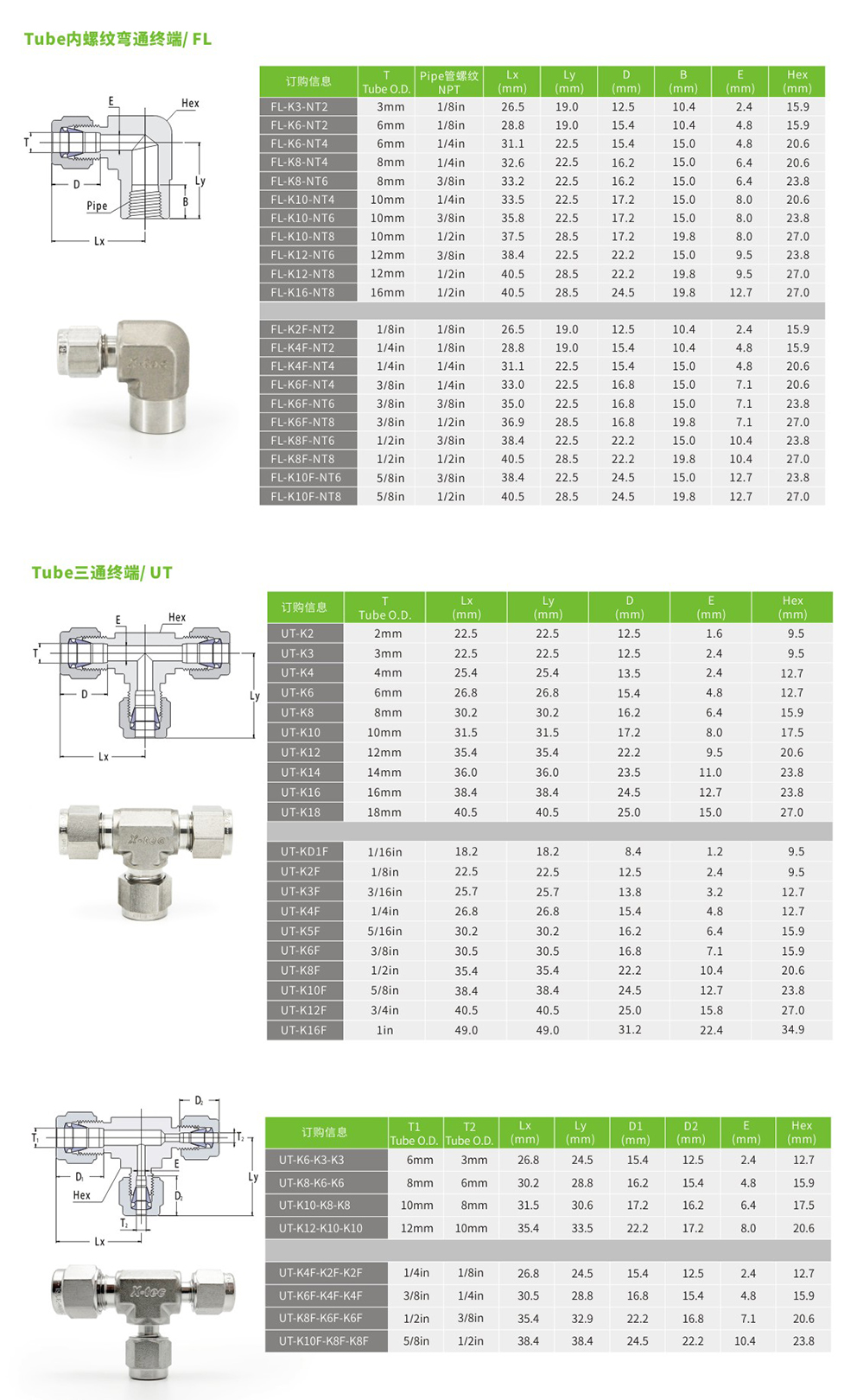

25.       Tube内螺纹角通终端 / FL



订购信息	T	Pipe管螺纹	Lx	Ly	D	B	E	Hex
	Tube O.D.	NPT	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
FL-K3-NT2	3mm	1 / 8in	26.5	19.0	12.5	10.4	2.4	15.9
FL-K6-NT2	6mm	1 / 8in	28.8	19.0	15.4	10.4	4.8	15.9
FL-K6-NT4	6mm	1 / 4in	31.1	22.5	15.4	15.0	4.8	20.6
FL-K6-NT6	6mm	3 / 8in	31.5	22.5	15.4	15.0	4.8	23.8
FL-K8-NT2	8mm	1 / 8in	30.2	19.0	16.2	10.4	6.4	15.9
FL-K8-NT4	8mm	1 / 4in	32.6	22.5	16.2	15.0	6.4	20.6
FL-K8-NT6	8mm	3 / 8in	33.2	22.5	16.2	15.0	6.4	23.8
FL-K10-NT4	10mm	1 / 4in	33.5	22.5	17.2	15.0	8.0	20.6
FL-K10-NT6	10mm	3 / 8in	34.0	22.5	17.2	15.0	8.0	23.8
FL-K10-NT8	10mm	1 / 2in	35.6	28.5	17.2	19.8	8.0	27.0
FL-K12-NT4	12mm	1 / 4in	35.4	22.5	22.2	15.0	9.5	20.6
FL-K12-NT6	12mm	3 / 8in	36.0	22.5	22.2	15.0	9.5	23.8
FL-K12-NT8	12mm	1 / 2in	37.5	28.5	22.2	19.8	9.5	27.0
FL-K2F-NT2	1 / 8in	1 / 8in	26.5	19.0	12.5	10.4	2.4	15.9
FL-K4F-NT2	1 / 4in	1 / 8in	28.8	19.0	15.4	10.4	4.8	15.9
FL-K4F-NT4	1 / 4in	1 / 4in	31.1	22.5	15.4	15.0	4.8	20.6
FL-K4F-NT6	1 / 4in	3 / 8in	31.5	22.5	15.4	15.0	4.8	23.8
FL-K6F-NT4	3 / 8in	1 / 4in	32.8	22.5	16.8	15.0	7.1	20.6
FL-K6F-NT6	3 / 8in	3 / 8in	33.3	22.5	16.8	15.0	7.1	23.8
FL-K6F-NT8	3 / 8in	1 / 2in	35.0	28.5	16.8	19.8	7.1	27.0
FL-K8F-NT4	1 / 2in	1 / 4in	35.4	22.5	22.2	15.0	10.4	20.6
FL-K8F-NT6	1 / 2in	3 / 8in	36.0	22.5	22.2	15.0	10.4	23.8
FL-K8F-NT8	1 / 2in	1 / 2in	37.5	28.5	22.2	19.8	10.4	27.0

26.       Tube三通终端 / UT

订购信息	T	Lx	Ly	D	E	Hex
	Tube O.D.	( mm )	( mm )	( mm )	( mm )	( mm )
UT-K2	2mm	22.5	22.5	12.5	1.6	9.5
UT-K3	3mm	22.5	22.5	12.5	2.4	9.5
UT-K4	4mm	25.5	25.5	13.5	2.4	12.7
UT-K6	6mm	26.8	26.8	15.4	4.8	12.7
UT-K8	8mm	30.2	30.2	16.2	6.4	15.9
UT-K10	10mm	31.5	31.5	17.2	8.0	17.5
UT-K12	12mm	35.4	35.4	22.2	9.5	20.6
UT-K14	14mm	36.0	36.0	23.5	11.0	23.8
UT-K2F	1 / 8in	22.5	22.5	12.5	2.4	9.5
UT-K4F	1 / 4in	26.8	26.8	15.4	4.8	12.7
UT-K6F	3 / 8in	30.5	30.5	16.8	7.1	15.9
UT-K8F	1 / 2in	35.4	35.4	22.2	10.4	20.6
UT-K12F	3 / 4in	37.8	37.8	24.0	15.8	27



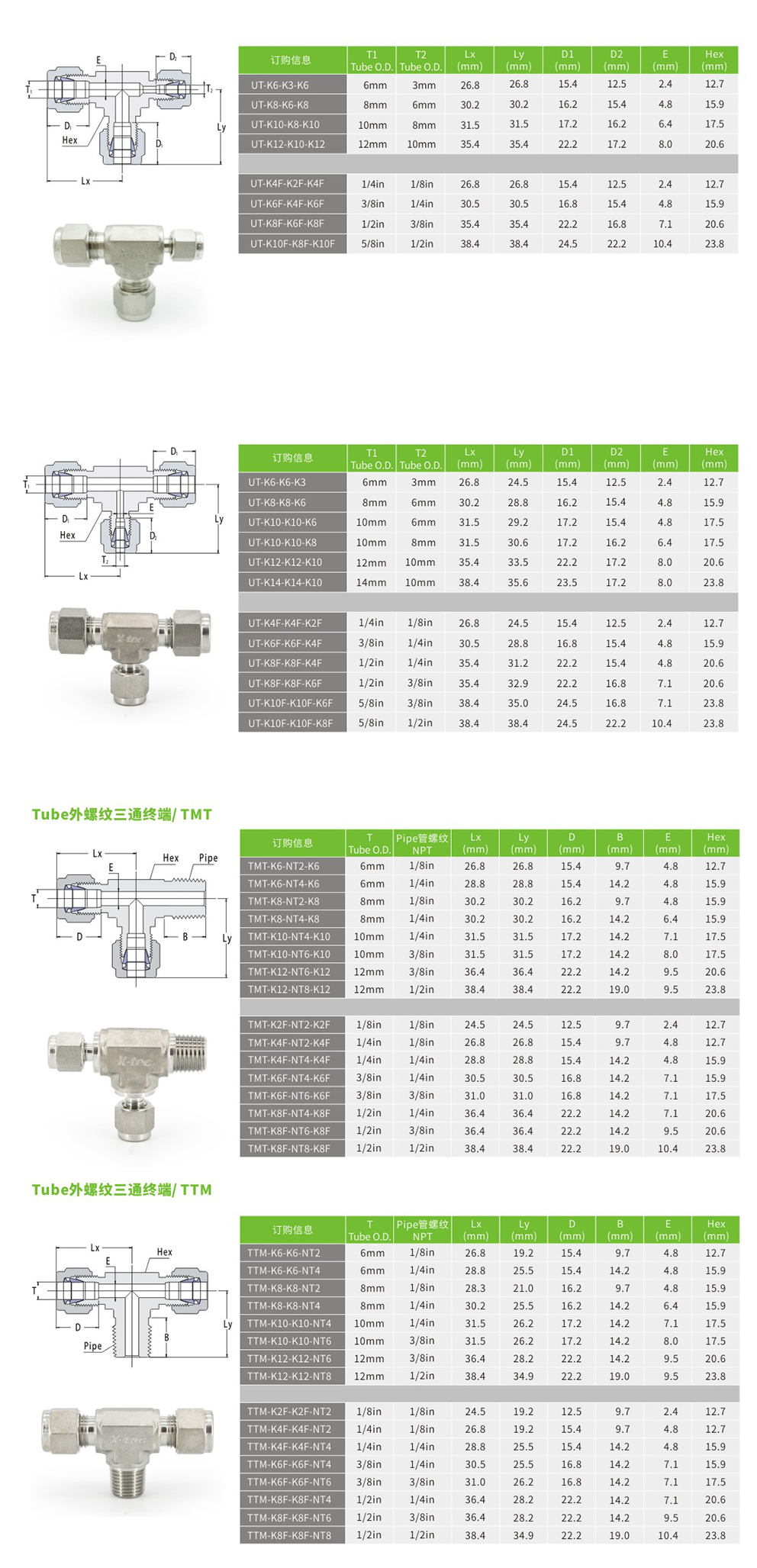

订购信息	T1	T2	Lx	Ly	D1	D2	E	Hex
	Tube O.D.	Tube O.D.	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
UT-K6-K6-K3	6mm	3mm	26.8	24.5	15.4	12.5	2.4	12.7
UT-K8-K8-K6	8mm	6mm	30.2	28.8	16.2	15.4	4.8	15.9
UT-K10-K10-K6	10mm	6mm	31.5	29.2	17.2	15.4	4.8	17.5
UT-K10-K10-K8	10mm	8mm	31.5	30.6	17.2	16.2	6.4	17.5
UT-K12-K12-K10	12mm	10mm	35.4	33.5	22.2	17.2	8.0	20.6
UT-K4F-K4F-K2F	1 / 4in	1 / 8in	26.8	24.5	15.4	12.5	2.4	12.7
UT-K6F-K6F-K4F	3 / 8in	1 / 4in	30.5	28.8	16.8	15.4	4.8	15.9
UT-K8F-K8F-K4F	1 / 2in	1 / 4in	35.4	31.2	22.2	15.4	4.8	20.6
UT-K8F-K8F-K6F	1 / 2in	3 / 8in	35.4	32.9	22.2	16.8	7.1	20.6



订购信息	T1	T2	Lx	Ly	D1	D2	E	Hex
	Tube O.D.	Tube O.D.	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
UT-K6-K3-K6	6mm	3mm	26.8	26.8	15.4	12.5	2.4	12.7
UT-K8-K6-K8	8mm	6mm	30.2	30.2	16.2	15.4	4.8	15.9
UT-K10-K8-K10	10mm	8mm	31.5	31.5	17.2	16.2	6.4	17.5
UT-K12-K10-K12	12mm	10mm	35.4	35.4	22.2	17.2	8.0	20.6
UT-K4F-K2F-K4F	1 / 4in	1 / 8in	26.8	26.8	15.4	12.5	2.4	12.7
UT-K6F-K4F-K6F	3 / 8in	1 / 4in	30.5	30.5	16.8	15.4	4.8	15.9
UT-K8F-K6F-K8F	1 / 2in	3 / 8in	35.4	35.4	22.2	16.8	7.1	20.6







订购信息	T1	T2	Lx	Ly	D1	D2	E	Hex
	Tube O.D.	Tube O.D.	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
UT-K6-K3-K3	6mm	3mm	26.8	24.5	15.4	12.5	2.4	12.7
UT-K8-K6-K6	8mm	6mm	30.2	28.8	16.2	15.4	4.8	15.9
UT-K10-K8-K8	10mm	8mm	31.5	30.6	17.2	16.2	6.4	17.5
UT-K12-K10-K10	12mm	10mm	35.4	33.5	22.2	17.2	8.0	20.6
UT-K4F-K2F-K2F	1 / 4in	1 / 8in	26.8	24.5	15.4	12.5	2.4	12.7
UT-K6F-K4F-K4F	3 / 8in	1 / 4in	30.5	28.8	16.8	15.4	4.8	15.9
UT-K8F-K6F-K6F	1 / 2in	3 / 8in	35.4	32.9	22.2	16.8	7.1	20.6

27.       Tube外螺纹三通终端 / TMT



订购信息	T	Pipe管螺纹	Lx	Ly	D	B	E	Hex
	Tube O.D.	NPT	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
TMT-K6-NT2-K6	6mm	1 / 8in	26.8	26.8	15.4	9.7	4.8	12.7
TMT-K6-NT4-K6	6mm	1 / 4in	28.8	28.8	15.4	14.2	4.8	15.9
TMT-K8-NT2-K8	8mm	1 / 8in	30.2	30.2	16.2	9.7	4.8	15.9
TMT-K8-NT4-K8	8mm	1 / 4in	30.2	30.2	16.2	14.2	6.4	15.9
TMT-K10-NT4-K10	10mm	1 / 4in	31.5	31.5	17.2	14.2	7.1	17.5
TMT-K10-NT6-K10	10mm	3 / 8in	31.5	31.5	17.2	14.2	8.0	17.5
TMT-K12-NT6-K12	12mm	3 / 8in	35.4	35.4	22.2	14.2	9.5	20.6
TMT-K12-NT8-K12	12mm	1 / 2in	36.0	36.0	22.2	19.0	9.5	23.8
TMT-K2F-NT2-K2F	1 / 8in	1 / 8in	24.5	24.5	12.5	9.7	2.4	12.7
TMT-K4F-NT2-K4F	1 / 4in	1 / 8in	26.8	26.8	15.4	9.7	4.8	12.7
TMT-K4F-NT4-K4F	1 / 4in	1 / 4in	28.8	28.8	15.4	14.2	4.8	15.9
TMT-K6F-NT4-K6F	3 / 8in	1 / 4in	30.5	30.5	16.8	14.2	7.1	15.9
TMT-K6F-NT6-K6F	3 / 8in	3 / 8in	31.0	31.0	16.8	14.2	7.1	17.5
TMT-K8F-NT4-K8F	1 / 2in	1 / 4in	35.4	35.4	22.2	14.2	7.1	20.6
TMT-K8F-NT6-K8F	1 / 2in	3 / 8in	35.4	35.4	22.2	14.2	9.5	20.6
TMT-K8F-NT8-K8F	1 / 2in	1 / 2in	36.0	36.0	22.2	19.0	10.4	23.8

28.       Tube外螺纹三通终端 / TTM



订购信息	T	Pipe管螺纹	Lx	Ly	D	B	E	Hex
	Tube O.D.	NPT	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
TTM-K6-K6-NT2	6mm	1 / 8in	26.8	19.2	15.4	9.7	4.8	12.7
TTM-K6-K6-NT4	6mm	1 / 4in	28.8	25.5	15.4	14.2	4.8	15.9
TTM-K8-K8-NT2	8mm	1 / 8in	28.3	21.0	16.2	9.7	4.8	15.9
TTM-K8-K8-NT4	8mm	1 / 4in	30.2	25.5	16.2	14.2	6.4	15.9
TTM-K10-K10-NT4	10mm	1 / 4in	31.5	26.2	17.2	14.2	7.1	17.5
TTM-K10-K10-NT6	10mm	3 / 8in	31.5	26.2	17.2	14.2	8.0	17.5
TTM-K12-K12-NT6	12mm	3 / 8in	35.4	28.2	22.2	14.2	9.5	20.6
TTM-K12-K12-NT8	12mm	1 / 2in	36.0	33.3	22.2	19.0	9.5	23.8
TTM-K2F-K2F-NT2	1 / 8in	1 / 8in	24.5	19.2	12.5	9.7	2.4	12.7
TTM-K4F-K4F-NT2	1 / 4in	1 / 8in	26.8	19.2	15.4	9.7	4.8	12.7
TTM-K4F-K4F-NT4	1 / 4in	1 / 4in	28.8	25.5	15.4	14.2	4.8	15.9
TTM-K6F-K6F-NT4	3 / 8in	1 / 4in	30.5	25.5	16.8	14.2	7.1	15.9
TTM-K6F-K6F-NT6	3 / 8in	3 / 8in	31.0	26.2	16.8	14.2	7.1	17.5
TTM-K8F-K8F-NT4	1 / 2in	1 / 4in	35.4	28.2	22.2	14.2	7.1	20.6
TTM-K8F-K8F-NT6	1 / 2in	3 / 8in	35.4	28.2	22.2	14.2	9.5	20.6
TTM-K8F-K8F-NT8	1 / 2in	1 / 2in	36.0	33.3	22.2	19.0	10.4	23.8

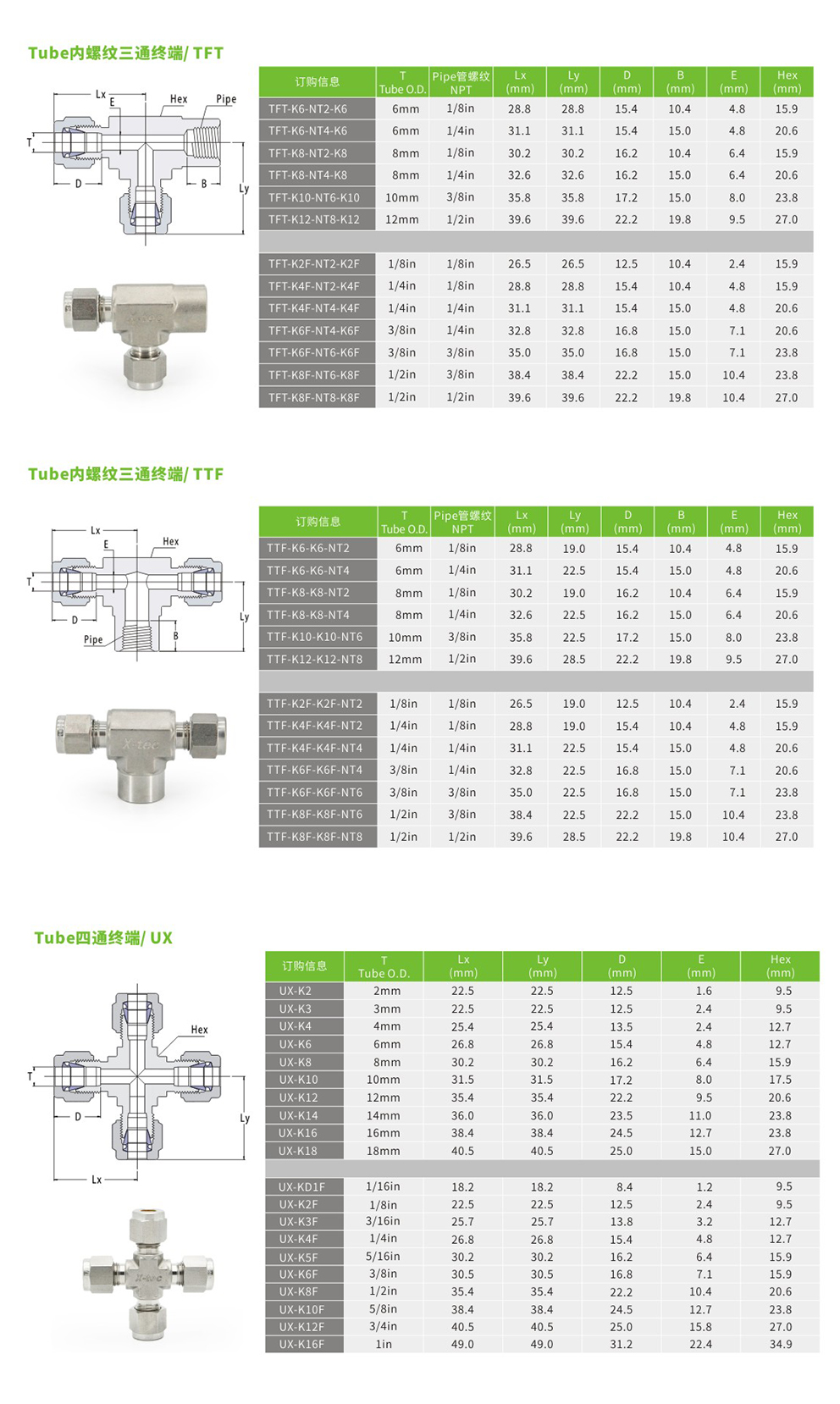

29.       Tube内螺纹三通终端 / TFT



订购信息	T	Pipe管螺纹	Lx	Ly	D	B	E	Hex
	Tube O.D.	NPT	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
TFT-K6-NT2-K6	6mm	1 / 8in	28.8	28.8	15.4	10.4	4.8	15.9
TFT-K6-NT4-K6	6mm	1 / 4in	31.1	31.1	15.4	15.0	4.8	20.6
TFT-K8-NT2-K8	8mm	1 / 8in	30.2	30.2	16.2	10.4	6.4	15.9
TFT-K8-NT4-K8	8mm	1 / 4in	32.6	32.6	16.2	15.0	6.4	20.6
TFT-K10-NT6-K10	10mm	3 / 8in	34.0	34.0	17.2	15.0	8.0	23.8
TFT-K12-NT8-K12	12mm	1 / 2in	37.5	37.5	22.2	19.8	9.5	27.0
TFT-K2F-NT2-K2F	1 / 8in	1 / 8in	26.5	26.5	12.5	10.4	2.4	15.9
TFT-K4F-NT2-K4F	1 / 4in	1 / 8in	28.8	28.8	15.4	10.4	4.8	15.9
TFT-K4F-NT4-K4F	1 / 4in	1 / 4in	31.1	31.1	15.4	15.0	4.8	20.6
TFT-K6F-NT4-K6F	3 / 8in	1 / 4in	32.8	32.8	16.8	15.0	7.1	20.6
TFT-K6F-NT6-K6F	3 / 8in	3 / 8in	33.3	33.3	16.8	15.0	7.1	23.8
TFT-K8F-NT6-K8F	1 / 2in	3 / 8in	36.0	36.0	22.2	15.0	10.4	23.8
TFT-K8F-NT8-K8F	1 / 2in	1 / 2in	37.5	37.5	22.2	19.8	10.4	27.0

30.        Tube内螺纹三通终端 / TTF



订购信息	T	Pipe管螺纹	Lx	Ly	D	B	E	Hex
	Tube O.D.	NPT	( mm )	( mm )	( mm )	( mm )	( mm )	( mm )
TTF-K6-K6-NT2	6mm	1 / 8in	28.8	19.0	15.4	10.4	4.8	15.9
TTF-K6-K6-NT4	6mm	1 / 4in	31.1	22.5	15.4	15.0	4.8	20.6
TTF-K8-K8-NT2	8mm	1 / 8in	30.2	19.0	16.2	10.4	6.4	15.9
TTF-K8-K8-NT4	8mm	1 / 4in	32.6	22.5	16.2	15.0	6.4	20.6
TTF-K10-K10-NT6	10mm	3 / 8in	34.0	22.5	17.2	15.0	8.0	23.8
TTF-K12-K12-NT8	12mm	1 / 2in	37.5	28.5	22.2	19.8	9.5	27.0
TTF-K2F-K2F-NT2	1 / 8in	1 / 8in	26.5	19.0	12.5	10.4	2.4	15.9
TTF-K4F-K4F-NT2	1 / 4in	1 / 8in	28.8	19.0	15.4	10.4	4.8	15.9
TTF-K4F-K4F-NT4	1 / 4in	1 / 4in	31.1	22.5	15.4	15.0	4.8	20.6
TTF-K6F-K6F-NT4	3 / 8in	1 / 4in	32.8	22.5	16.8	15.0	7.1	20.6
TTF-K6F-K6F-NT6	3 / 8in	3 / 8in	33.3	22.5	16.8	15.0	7.1	23.8
TTF-K8F-K8F-NT6	1 / 2in	3 / 8in	36.0	22.5	22.2	15.0	10.4	23.8
TTF-K8F-K8F-NT8	1 / 2in	1 / 2in	37.5	28.5	22.2	19.8	10.4	27.0

31.       Tube四通终端 / UX

‍‍‍‍

订购信息	T	Lx	Ly	D	E	Hex
	Tube O.D.	( mm )	( mm )	( mm )	( mm )	( mm )
UX-K2	2mm	22.5	22.5	12.5	1.6	9.5
UX-K3	3mm	22.5	22.5	12.5	2.4	9.5
UX-K4	4mm	25.5	25.5	13.5	2.4	12.7
UX-K6	6mm	26.8	26.8	15.4	4.8	12.7
UX-K8	8mm	30.2	30.2	16.2	6.4	15.9
UX-K10	10mm	31.5	31.5	17.2	8.0	17.5
UX-K12	12mm	35.4	35.4	22.2	9.5	20.6
UX-K14	14mm	36.0	36.0	23.5	11.0	23.8
UX-K2F	1 / 8in	22.5	22.5	12.5	2.4	9.5
UX-K4F	1 / 4in	26.8	26.8	15.4	4.8	12.7
UX-K6F	3 / 8in	30.5	30.5	16.8	7.1	15.9
UX-K8F	1 / 2in	35.4	35.4	22.2	10.4	20.6
UX-K12F	‍‍3 / 4in‍‍	‍‍37.8‍‍	‍‍37.8‍‍	‍‍24.0‍‍	‍‍15.8‍‍	‍‍27‍‍
