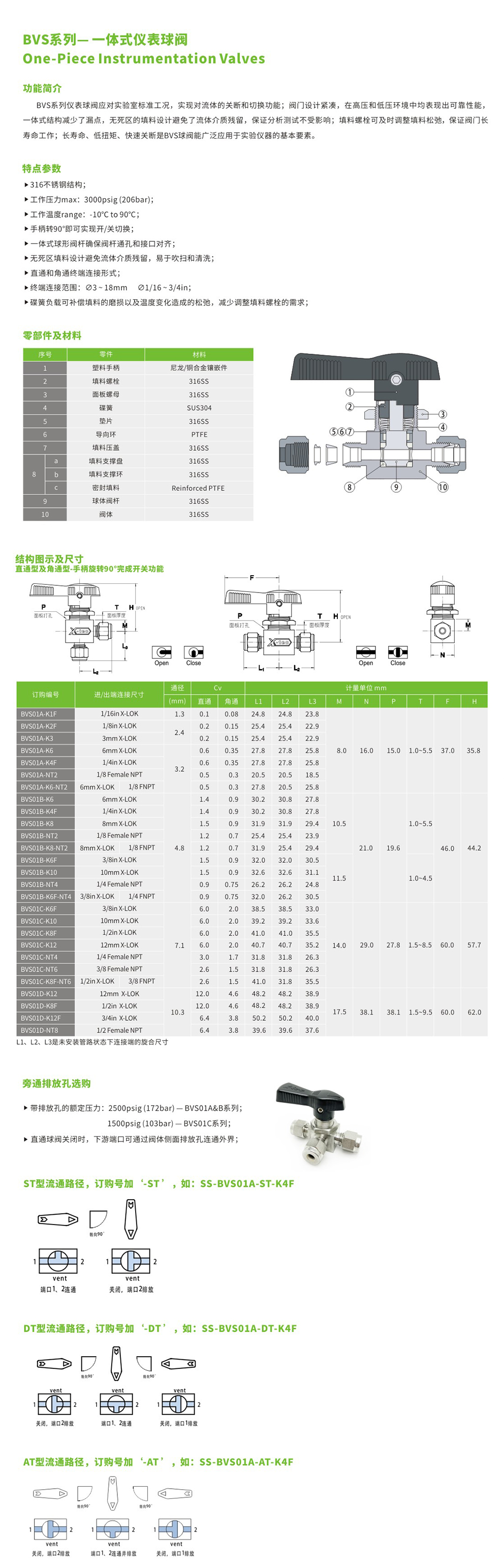

BVS系列
One-PieceInstrumentation Valves
一体式仪表球阀
功能简介
BVS系列仪表球阀应对实验室标准工况，实现对流体的关断和切换功能；阀门设计紧凑，在高压和低压环境中均表现出可靠性能，一体式结构减少了漏点，无死区的填料设计避免了流体介质残留，保证分析测试不受影响；填料螺栓可及时调整填料松弛，保证阀门长寿命工作；长寿命、低扭矩、快速关断是BVS球阀能广泛应用于实验仪器的基本要素。
特点参数
l 316不锈钢结构
l 工作压力max：3000psig (206bar)；
l 工作温度range：-10℃ ~ 90℃；
l 手柄转90°即可实现开/关切换；
l 一体式球形阀杆确保阀杆通孔和接口对齐；
l 无死区填料设计避免流体介质残留，易于吹扫和清洗；
l 直通和角通终端连接形式；
l 终端连接范围：Φ3 ~ 12mm Φ1/8 ~ 1/2in
l无旋转密封阀针，并提供多种主密封形式；
l碟簧负载可补偿填料的磨损以及温度变化造成的松弛，减少调整填料螺栓的需求。
零部件及材料
序号 | 零件 | 材料 | |
1 | 塑料手柄 | 尼龙 / 铜合金镶嵌件 | |
2 | 填料螺栓 | 316SS | |
3 | 面板螺母 | 316SS | |
4 | 碟 簧 | 51CrV4 | |
5 | 垫 片 | 316SS | |
6 | 导向环 | PTFE | |
7 | 填料压盖 | 316SS | |
8 | a | 填料支撑盘 | 316SS |
b | 填料支撑环 | 316SS | |
c | 密封填料 | Reinforced PTFE | |
9 | 球体阀杆 | 316SS | |
10 | 阀 体 | 316SS | |
结构图示及尺寸
直通型及角通型 – 手柄旋转90°完成开关功能
| 订购编号 | 进/出端连接尺寸 | 通径 | Cv | 计量单位 mm | ||||||||||
| (mm) | 直通 | 角通 | L1 | L2 | L3 | M | N | P | T | F | H | |||
| BVS01A - K1F | 1 / 16in X-LOK | 1.3 | 0.1 | 0.08 | 24.8 | 24.8 | 23.8 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS01A - K2F | 1 / 8in X-LOK | 2.4 | 0.2 | 0.15 | 25.4 | 25.4 | 22.9 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS01A - K3 | 3mm X-LOK | 2.4 | 0.2 | 0.15 | 25.4 | 25.4 | 22.9 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS01A - K6 | 6mm X-LOK | 3.2 | 0.6 | 0.35 | 27.8 | 27.8 | 25.8 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS01A - K4F | 1 / 4in X-LOK | 3.2 | 0.6 | 0.35 | 27.8 | 27.8 | 25.8 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS01A - NT2 | 1 / 8in FNPT | 3.2 | 0.5 | 0.3 | 20.5 | 20.5 | 18.5 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS01A - K6 - NT2 | 6mm X-LOK | 1 / 8in FNPT | 3.2 | 0.5 | 0.3 | 27.8 | 20.5 | 25.8 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 |
| BVS01B - K6 | 6mm X-LOK | 4.8 | 1.4 | 0.9 | 30.2 | 30.8 | 27.8 | 10.5 | 21 | 19.6 | 1 ~ 5.5 | 46 | 44.2 | |
| BVS01B - K4F | 1 / 4in X-LOK | 4.8 | 1.4 | 0.9 | 30.2 | 30.8 | 27.8 | 10.5 | 21 | 19.6 | 1 ~ 5.5 | 46 | 44.2 | |
| BVS01B - K8 | 8mm X-LOK | 4.8 | 1.5 | 0.9 | 31.9 | 31.9 | 29.4 | 10.5 | 21 | 19.6 | 1 ~ 5.5 | 46 | 44.2 | |
| BVS01B - NT2 | 1 / 8in FNPT | 4.8 | 1.2 | 0.7 | 25.4 | 25.4 | 23.9 | 10.5 | 21 | 19.6 | 1 ~ 5.5 | 46 | 44.2 | |
| BVS01B - K8 - NT2 | 8mm X -LOK | 1 / 8in FNPT | 4.8 | 1.2 | 0.7 | 31.9 | 25.4 | 29.4 | 10.5 | 21 | 19.6 | 1 ~ 5.5 | 46 | 44.2 |
| BVS01B - K6F | 3 / 8in X-LOK | 4.8 | 1.5 | 0.9 | 32 | 32 | 30.5 | 11.5 | 21 | 19.6 | 1 ~ 4.5 | 46 | 44.2 | |
| BVS01B - K10 | 10mm X-LOK | 4.8 | 1.5 | 0.9 | 32.6 | 32.6 | 31.1 | 11.5 | 21 | 19.6 | 1 ~ 4.5 | 46 | 44.2 | |
| BVS01B - NT4 | 1 / 4in FNPT | 4.8 | 0.9 | 0.75 | 26.2 | 26.2 | 24.8 | 11.5 | 21 | 19.6 | 1 ~ 4.5 | 46 | 44.2 | |
| BVS01B - K6F - NT4 | 3 / 8in X-LOK | 1 / 4in FNPT | 4.8 | 0.9 | 0.75 | 32 | 26.2 | 30.5 | 11.5 | 21 | 19.6 | 1 ~ 4.5 | 46 | 44.2 |
| BVS01C - K6F | 3 / 8in X-LOK | 7.1 | 6.0 | 2.0 | 38.5 | 38.5 | 33 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS01C - K10 | 10mm X-LOK | 7.1 | 6.0 | 2.0 | 39.2 | 39.2 | 33.6 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS01C - K8F | 1 / 2in X-LOK | 7.1 | 6.0 | 2.0 | 41 | 41 | 35.5 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS01C - K12 | 12mm X-LOK | 7.1 | 6.0 | 2.0 | 40.7 | 40.7 | 35.2 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS01C - NT4 | 1 / 4in FNPT | 7.1 | 3.0 | 1.7 | 31.8 | 31.8 | 26.3 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS01C - NT6 | 3 / 8in FNPT | 7.1 | 2.6 | 1.5 | 31.8 | 31.8 | 26.3 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS01C - K8F - NT6 | 1 / 2in X-LOK | 3 / 8in FNPT | 7.1 | 2.6 | 1.5 | 41 | 31.8 | 35.5 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 |
L1、L2、L3是未安装管路状态下连接端的旋合尺寸

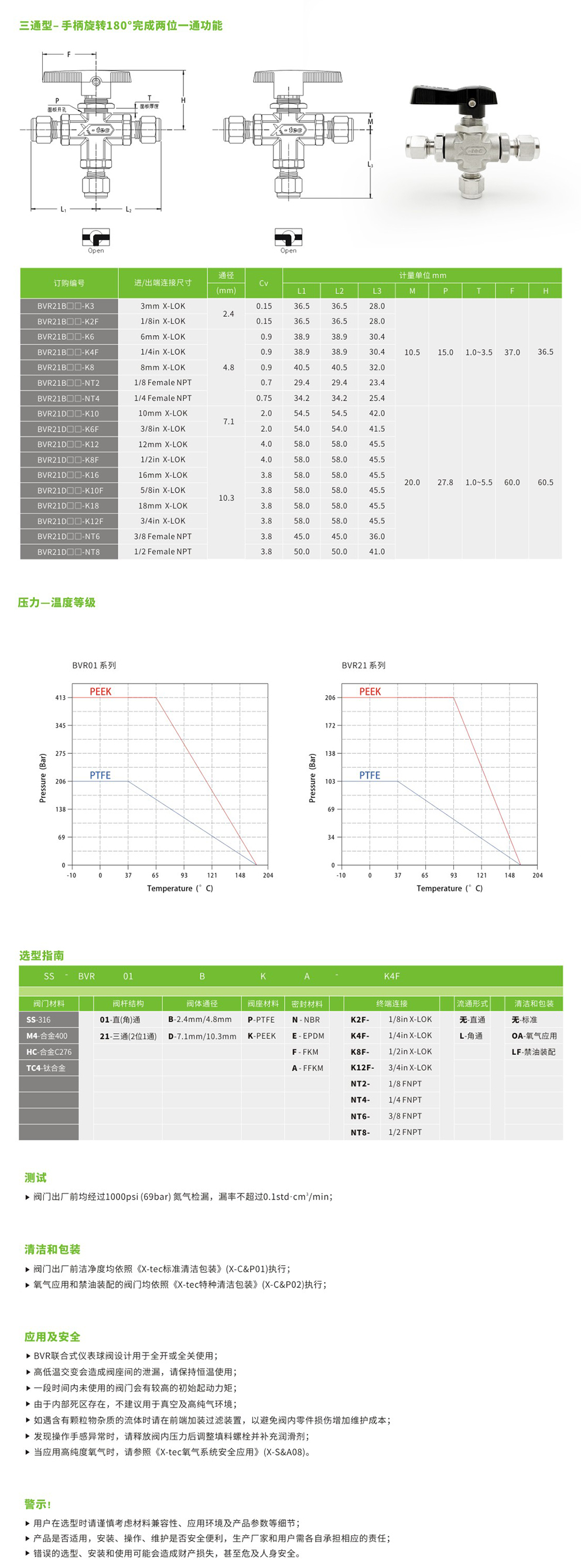

三通型 – 手柄旋转180°完成两位一通功能
| 订购编号 | 进/出端连接尺寸 | 通径 | Cv | 计量单位 mm | |||||||||
| (mm) | L1 | L2 | L3 | M | N | P | T | F | H | ||||
| BVS21A - K1F | 1 / 16in X-LOK | 1.3 | 0.08 | 24.8 | 24.8 | 23.8 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS21A - K2F | 1 / 8in X-LOK | 2.4 | 0.15 | 25.4 | 25.4 | 22.9 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS21A - K3 | 3mm X-LOK | 2.4 | 0.15 | 25.4 | 25.4 | 22.9 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS21A - K6 | 6mm X-LOK | 3.2 | 0.35 | 27.8 | 27.8 | 25.8 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS21A - K4F | 1 / 4in X-LOK | 3.2 | 0.35 | 27.8 | 27.8 | 25.8 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS21A - NT2 | 1 / 8in FNPT | 3.2 | 0.3 | 20.5 | 20.5 | 18.5 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 | |
| BVS21A - K6 - NT2 | 6mm X-LOK | 1 / 8in FNPT | 3.2 | 0.3 | 27.8 | 20.5 | 25.8 | 8 | 16 | 15 | 1 ~ 5.5 | 37 | 35.8 |
| BVS21B - K6 | 6mm X-LOK | 4.8 | 0.9 | 30.2 | 30.8 | 27.8 | 10.5 | 21 | 19.6 | 1 ~ 5.5 | 46 | 44.2 | |
| BVS21B - K4F | 1 / 4in X-LOK | 4.8 | 0.9 | 30.2 | 30.8 | 27.8 | 10.5 | 21 | 19.6 | 1 ~ 5.5 | 46 | 44.2 | |
| BVS21B - K8 | 8mm X-LOK | 4.8 | 0.9 | 31.9 | 31.9 | 29.4 | 10.5 | 21 | 19.6 | 1 ~ 5.5 | 46 | 44.2 | |
| BVS21B - NT2 | 1 / 8in FNPT | 4.8 | 0.7 | 25.4 | 25.4 | 23.9 | 10.5 | 21 | 19.6 | 1 ~ 5.5 | 46 | 44.2 | |
| BVS21B - K8 - NT2 | 8mm X -LOK | 1 / 8in FNPT | 4.8 | 0.7 | 31.9 | 25.4 | 29.4 | 10.5 | 21 | 19.6 | 1 ~ 5.5 | 46 | 44.2 |
| BVS21B - K6F | 3 / 8in X-LOK | 4.8 | 0.9 | 32 | 32 | 30.5 | 11.5 | 21 | 19.6 | 1 ~ 4.5 | 46 | 44.2 | |
| BVS21B - K10 | 10mm X-LOK | 4.8 | 0.9 | 32.6 | 32.6 | 31.1 | 11.5 | 21 | 19.6 | 1 ~ 4.5 | 46 | 44.2 | |
| BVS21B - NT4 | 1 / 4in FNPT | 4.8 | 0.75 | 26.2 | 26.2 | 24.8 | 11.5 | 21 | 19.6 | 1 ~ 4.5 | 46 | 44.2 | |
| BVS21B - K6F - NT4 | 3 /8in X-LOK | 1 / 4in FNPT | 4.8 | 0.75 | 32 | 26.2 | 30.5 | 11.5 | 21 | 19.6 | 1 ~ 4.5 | 46 | 44.2 |
| BVS21C - K6F | 3 / 8in X-LOK | 7.1 | 2.0 | 38.5 | 38.5 | 33 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS21C - K10 | 10mm X-LOK | 7.1 | 2.0 | 39.2 | 39.2 | 33.6 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS21C - K8F | 1 / 2in X-LOK | 7.1 | 2.0 | 41 | 41 | 35.5 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS21C - K12 | 12mm X-LOK | 7.1 | 2.0 | 40.7 | 40.7 | 35.2 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS21C - NT4 | 1 / 4in FNPT | 7.1 | 1.7 | 31.8 | 31.8 | 26.3 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS21C - NT6 | 3 / 8in FNPT | 7.1 | 1.5 | 31.8 | 31.8 | 26.3 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 | |
| BVS21C - K8F - NT6 | 1 /2in X-LOK | 3 / 8in FNPT | 7.1 | 1.5 | 41 | 31.8 | 35.5 | 14 | 29 | 27.8 | 1.5 ~ 8.5 | 60 | 57.7 |
L1、L2、L3是未安装管路状态下连接端的旋合尺寸

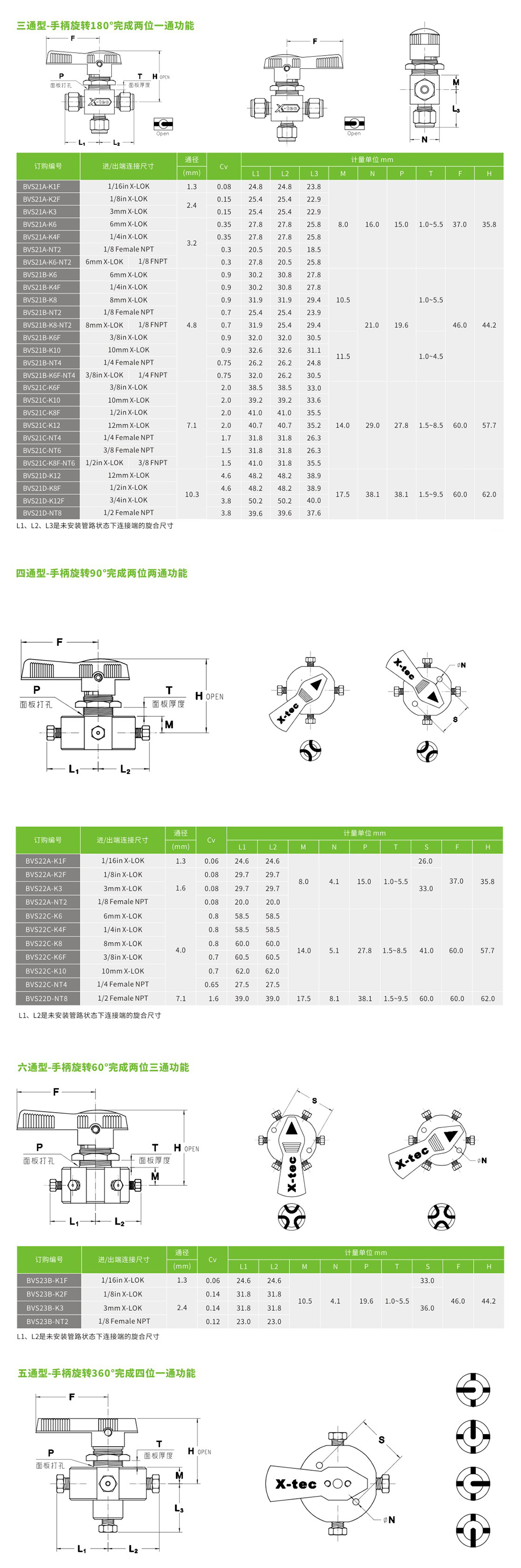

四通型 – 手柄旋转90°完成两位两通功能
| 订购编号 | 进/出端连接尺寸 | 通径 | Cv | 计量单位 mm | |||||||||
| (mm) | L1 | L2 | M | N | P | T | S | F | H | ||||
| BVS22A - K1F | 1 / 16in X-LOK | 1.3 | 0.06 | 24.6 | 24.6 | 8 | 4.1 | 15 | 1 ~ 5.5 | 26 | 37 | 35.8 | |
| BVS22A - K2F | 1 / 8in X-LOK | 1.6 | 0.08 | 29.7 | 29.7 | 8 | 4.1 | 15 | 1 ~ 5.5 | 33 | 37 | 35.8 | |
| BVS22A - K3 | 3mm X-LOK | 1.6 | 0.08 | 29.7 | 29.7 | 8 | 4.1 | 15 | 1 ~ 5.5 | 33 | 37 | 35.8 | |
| BVS22A - NT2 | 1 / 8in FNPT | 1.6 | 0.08 | 20 | 20 | 8 | 4.1 | 15 | 1 ~ 5.5 | 33 | 37 | 35.8 | |
| BVS22C - K6 | 6mm X-LOK | 4 | 0.8 | 58.5 | 58.5 | 14 | 5.1 | 27.8 | 1.5 ~ 8.5 | 41 | 60 | 57.7 | |
| BVS22C - K4F | 1 / 4in X-LOK | 4 | 0.8 | 58.5 | 58.5 | 14 | 5.1 | 27.8 | 1.5 ~ 8.5 | 41 | 60 | 57.7 | |
| BVS22C - K8 | 8mm X-LOK | 4 | 0.8 | 60 | 60 | 14 | 5.1 | 27.8 | 1.5 ~ 8.5 | 41 | 60 | 57.7 | |
| BVS22C - K6F | 3 / 8in X-LOK | 4 | 0.7 | 60.5 | 60.5 | 14 | 5.1 | 27.8 | 1.5 ~ 8.5 | 41 | 60 | 57.7 | |
| BVS22C - K10 | 10mm X-LOK | 4 | 0.7 | 62 | 62 | 14 | 5.1 | 27.8 | 1.5 ~ 8.5 | 41 | 60 | 57.7 | |
| BVS22C - NT4 | 1 / 4in FNPT | 4 | 0.65 | 27.5 | 27.5 | 14 | 5.1 | 27.8 | 1.5 ~ 8.5 | 41 | 60 | 57.7 | |
L1、L2是未安装管路状态下连接端的旋合尺寸
六通型 – 手柄旋转90°完成两位三通功能
| 订购编号 | 进 / 出端连接尺寸 | 通径 | Cv | 计量单位 mm | |||||||||
| (mm) | L1 | L2 | M | N | P | T | S | F | H | ||||
| BVS23B - K1F | 1 / 16in X-LOK | 1.3 | 0.06 | 24.6 | 24.6 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 33 | 46 | 44.2 | |
| BVS23B - K2F | 1 / 8in X-LOK | 2.4 | 0.14 | 31.8 | 31.8 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 36 | 46 | 44.2 | |
| BVS23B - K3 | 3mm X-LOK | 2.4 | 0.14 | 31.8 | 31.8 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 36 | 46 | 44.2 | |
| BVS23B - NT2 | 1 / 8in FNPT | 2.4 | 0.12 | 23 | 23 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 36 | 46 | 44.2 | |
L1、L2是未安装管路状态下连接端的旋合尺寸
五通型 – 手柄旋转360°完成四位一通功能
| 订购编号 | 进 / 出端连接尺寸 | 通径 | Cv | 计量单位 mm | ||||||||||
| (mm) | L1 | L2 | L3 | M | N | P | T | S | F | H | ||||
| BVS41B - K1F | 1 / 16in X-LOK | 1.3 | 0.08 | 26.8 | 26.8 | 25.3 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 33 | 46 | 41.7 | |
| BVS41B - K2F | 1 / 8in X-LOK | 2.4 | 0.15 | 32.8 | 32.8 | 31 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 33 | 46 | 41.7 | |
| BVS41B - K3 | 3mm X-LOK | 2.4 | 0.15 | 32.8 | 32.8 | 31 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 33 | 46 | 41.7 | |
| BVS41B - K6 | 6mm X-LOK | 4.8 | 0.9 | 49.2 | 49.2 | 47.9 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 33 | 46 | 41.7 | |
| BVS41B - K4F | 1 / 4in X-LOK | 4.8 | 0.9 | 49.2 | 49.2 | 47.9 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 33 | 46 | 41.7 | |
| BVS41B - K8 | 8mm X-LOK | 4.8 | 0.9 | 50.8 | 50.8 | 49.5 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 33 | 46 | 41.7 | |
| BVS41B - NT2 | 1 / 8in FNPT | 4.8 | 0.7 | 20.8 | 20.8 | 19.5 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 33 | 46 | 41.7 | |
L1、L2、L3是未安装管路状态下连接端的旋合尺寸
七通型 – 手柄旋转360°完成六位一通功能
| 订购编号 | 进 / 出端连接尺寸 | 通径 | Cv | 计量单位 mm | ||||||||||
| (mm) | L1 | L2 | L3 | M | N | P | T | S | F | H | ||||
| BVS61B - K1F | 1 / 16in X-LOK | 1.3 | 0.08 | 27.3 | 27.3 | 25.3 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 33 | 46 | 41.7 | |
| BVS61B - K2F | 1 / 8in X-LOK | 2.4 | 0.14 | 32.8 | 32.8 | 31 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 36 | 46 | 41.7 | |
| BVS61B - K3 | 3mm X-LOK | 2.4 | 0.14 | 32.8 | 32.8 | 31 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 36 | 46 | 41.7 | |
| BVS61B - NT2 | 1 / 8in FNPT | 2.4 | 0.12 | 23 | 23 | 22.5 | 10.5 | 4.1 | 19.6 | 1 ~ 5.5 | 36 | 46 | 41.7 | |
L1、L2、L3是未安装管路状态下连接端的旋合尺寸

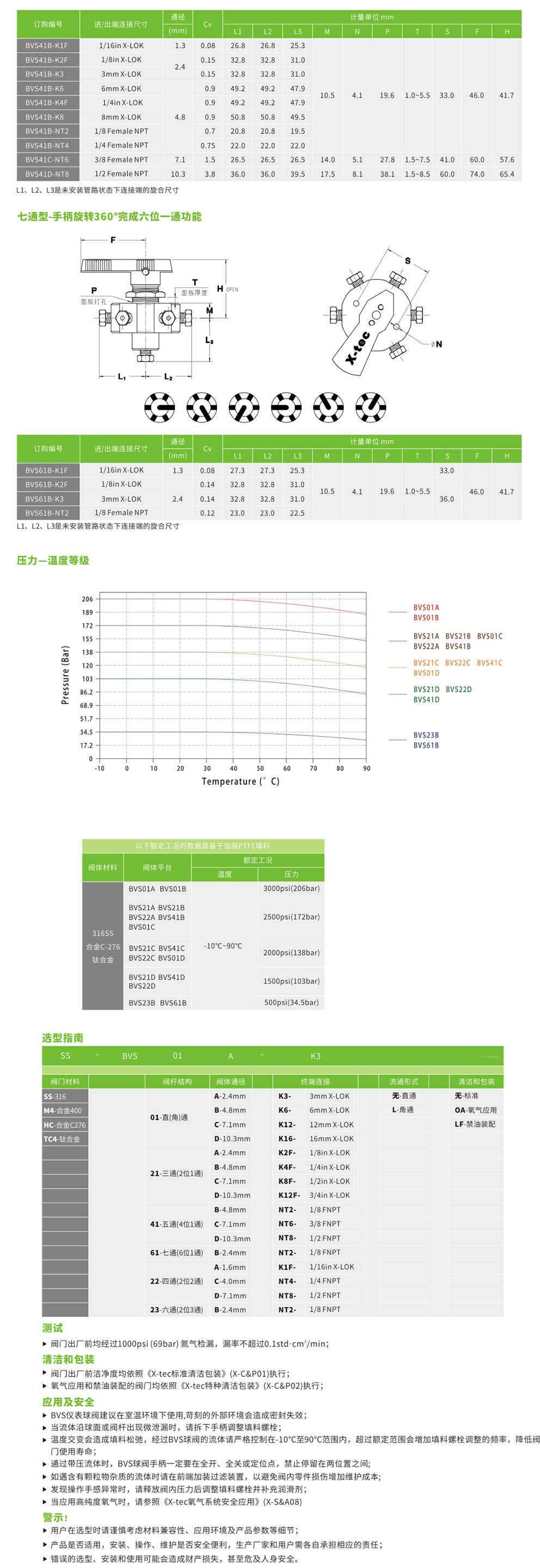

压力—温度等级
选型指南
| SS | — | BVS | 01 | A | — | K3 | — | M | L | — | OA | |
| 阀门材料 | 阀杆结构 | 阀体通径 | 终端连接 | 手柄形式 | 流通形式 | 清洁和包装 | ||||||
| SS - 316 | 01 - 直通 | A - 2.4mm | K3 - | 3mm X-LOK | 无 - 尼龙手柄 | 无 - 直通 | 无 - 标准 | |||||
| M-合金400 | B - 4.8mm | K6 - | 6mm X-LOK | M - 金属手柄 | L - 角通 | OA - 氧气应用 | ||||||
| HC-合金C276 | C - 7.1mm | K12 - | 12mm X-LOK | LF - 禁油装配 | ||||||||
| TA - 钛合金 | 21 - 三通(2位1通) | A - 2.4mm | K2F - | 1 / 8in X-LOK | ||||||||
| B - 4.8mm | K4F - | 1 / 4in X-LOK | ||||||||||
| C - 7.1mm | K8F - | 1 / 2in X-LOK | ||||||||||
| 41 - 五通 (4位1通) | B - 4.8mm | K1F - | 1 / 16in X-LOK | |||||||||
| 61 - 七通 (6位1通) | B - 2.4mm | NT4 - | 1 / 4in FNPT | |||||||||
| 22 - 四通 (2位2通) | A - 1.6mm | K3 - | 3mm X-LOK | |||||||||
| C - 4.0mm | K6 - | 6mm X-LOK | ||||||||||
| 23 - 六通 (2位3通) | B - 2.4mm | NT2 - | 1 / 8in FNPT | |||||||||
测试
阀门出厂前均经过1000psi (69bar) 氮气检漏，漏率不超过0.1std·cm3/min；
清洁和包装
阀门出厂前洁净度均依照《X-tec标准清洁包装》(X-C&P01)执行；
氧气应用和禁油装配的阀门均依照《X-tec特种清洁包装》(X-C&P02)执行；
应用及安全
BVS仪表球阀建议在室温环境下使用，苛刻的外部环境会造成密封失效；
当流体沿球面或阀杆出现微泄漏时，请拆下手柄调整填料螺栓；
温度交变会造成填料松弛，经过BVS球阀的流体请严格控制在 -10℃ ~ 90℃范围内，超过额定范围会增加填料螺栓调整的频率，降低阀门使用寿命；
通过带压流体时，BVS球阀手柄一定要在全开、全关或定位点，禁止停留在两位置之间；
如遇含有颗粒物杂质的流体时请在前端加装过滤装置，以避免阀内零件损伤增加维护成本；
发现操作手感异常时，请释放阀内压力后调整填料螺栓并补充润滑剂；
当应用高纯度氧气时，请参照《X-tec氧气系统安全应用》(X-S&A08)；
警示！
用户在选型时请谨慎考虑材料兼容性、应用环境及产品参数等细节；
产品是否适用，安装、操作、维护是否安全便利，生产厂家和用户需各自承担相应的责任；
错误的选型、安装和使用可能会造成财产损失，甚至危及人身安全.
